Sega Genesis Mini 1 and version 2, is a dedicated console modelled on the Sega Genesis. The Mini emulates the original console's 16-bit hardware. This product is also known as the Sega Mega Drive Mini outside of USA.

Connecting Sega Genesis Mini is super easy to any Game Wizard products, it’s plug and play. Plug in the machine's HDMI and twin USB cables into the Sega Genesis Mini and you are gaming.

Step 1. Inside your machine, check that your joystick control panel wiring is setup for console/PC play. (please check your manual for location).

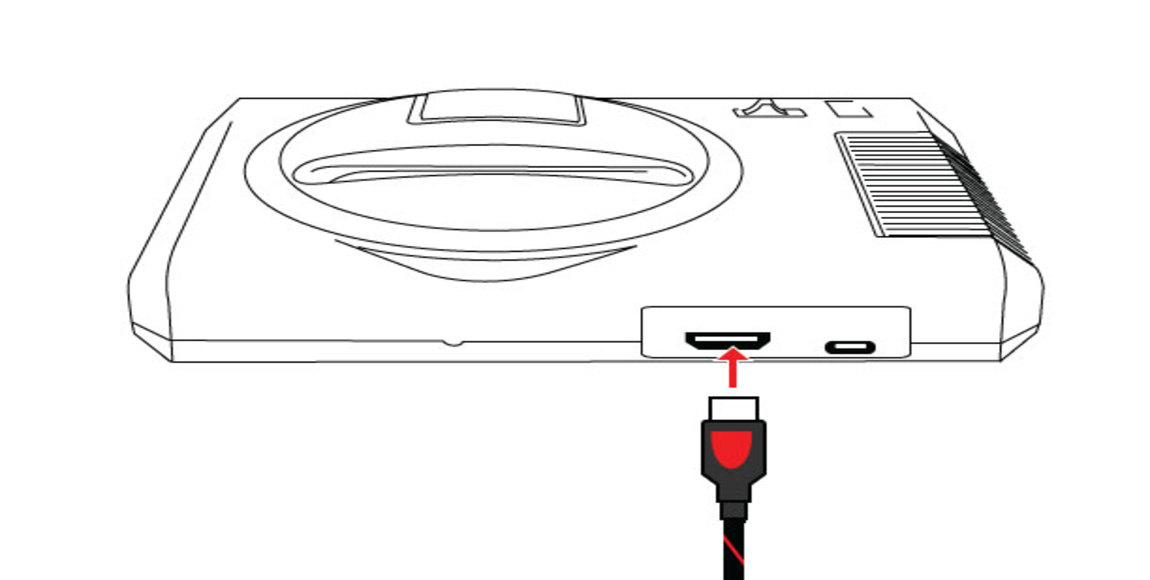

Step 2. After installing your Sega Genesis Mini console inside the machine, plug in the machine's monitor HDMI cable into your console.

Step 3. Plug in the Game Wizard Highway I/O board cable (twin USB) from inside your machine into your console.

Step 4. Change the front multimedia control panel set to Console. Depending on your machine configuration, the location of this switch will vary.



- Game Wizard Panel Switch = Console
- Hand Controllers Connected = No

Setup Instruction

Sega Genesis Mini HDMI arcade
Sega Genesis Mini USB Joystick
Sega Genesis Mini Panel Setup
Sega Genesis Mini Console Button
