XBOX 360, XBOX 360 Elite, XBOX 360 S are all 2nd generation XBOX consoles released by Microsoft.  All Arcooda Game Wizard arcade machines support XBOX 360 consoles.


Step 1. Inside your machine, check that your joystick control panel wiring is setup for console/PC play. (please check your manual for location).

Step 2. After installing your XBOX 360 inside the machine, plug in the Machine HDMI cable into your XBOX 360.


Step 3. Depending on your machine configuration, please check the audio cables connected to the Arcooda amplifier are labelled as Console/PC. XBOX 360 has a 3.5mm audio output that can connect directly into the Arcooda amplifier. Alternatively, you can use the HDMI output for audio source (depending on your machine's configuration). If there is no facility in your existing Game Wizard machine for HDMI audio output its easily solved by purchased an audio extractor from us (this is a simple device that goes from the HDMI cable creating an audio output that can be plugged into the Arcooda amplifer).

Step 4. Plug in the Highway I/O board USB twin ended cable into your XBOX 360.

Step 5. Change the front multimedia control panel set to Console. Depending on your machine configuration, the location of this switch will vary.


Step 6. Install your wired hand controllers into the front USB control panel, or, connect the wired hand controllers directly into the Highway I/O board inside your machine, or, use 3rd party adapters such as Magicboot USB drives. Hand controllers must be connected to activate the XBOX 360.



- Game Wizard Panel Switch = Console
- Hand Controllers Connected = Yes


Warning: Wireless 360 hand controllers need to be connected to your arcade machine via USB cable. However, cable quality will influence performance (and may not register If the cable is low standard). Please note, some clone/generic XBOX 360 controllers may not work correctly.

Setup Instruction

Connect HDMI & USB Cables from Arcooda Machine to XBOX360

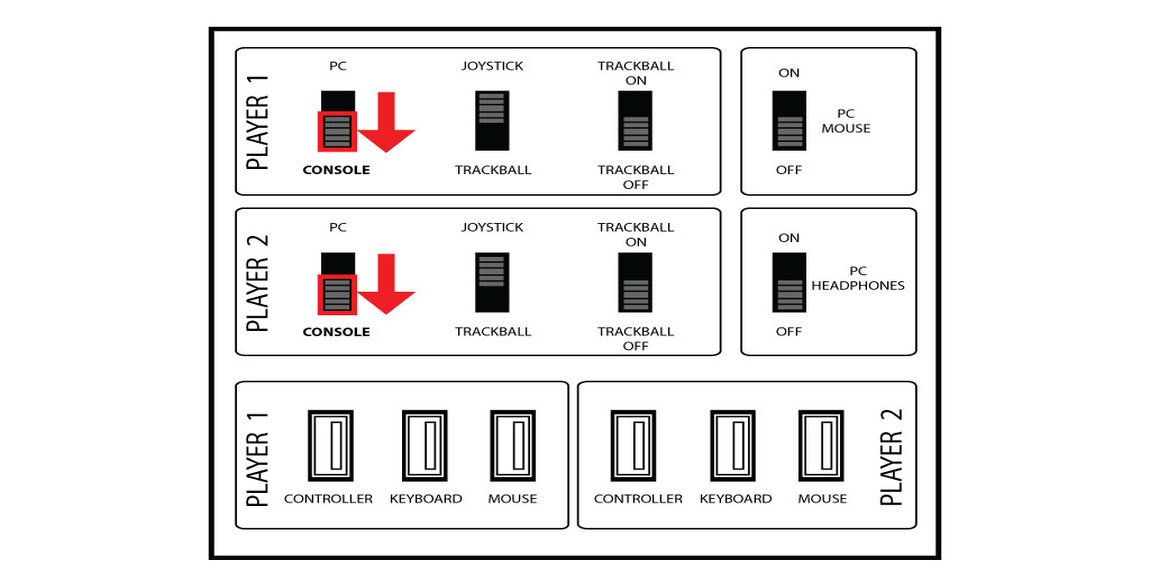

Turn Arcooda Media Panel switch to CONSOLE
Connect XBOX Controllers to Panel
Turn Arcooda Wide Media Panel switch to CONSOLE
Connect XBOX Controllers to Wide Panel
