Touch Wizard (Blue)

Please Ask
Color In Stock
Freight Estimate

Manual order only
20002BL In Stock
20002PU In Stock
Product No. 020002
Condition New
Warranty 12 Months
Coin Operated No
Product Series Touch Wizard
Manufacturer Arcooda
Arcooda Part No 20002
Location China

Featured Products

Touch Wizard Description

The Touch Wizard offers players flexibility of playing games via touchscreen and joystick game play. Supports almost all consoles, gaming options are endless. Also comes with side buttons for pinball game play.

Players can also enjoy all the benefits of Google's Play store by downloading their favourite Android games, social media and music apps. This means that not only are their favourite games available on a cabinet style machine, but they can also be played with the Sanwa joysticks and buttons. This machine compatible with a variety of hardware and software add-ons, it is Arcooda's short base, bar top arcade machine.

Game Wizard machines are user-friendly with a purpose-built Arcooda Plug and Play system. This unique board allows the user to simply plug in consoles, PC, android or arcade game boards for instant access to an unlimited range of games.

MONITOR: 19" Full Multi Touchscreen, The High Definition 1080P (1080 x 1920) with VGA + HDMI HD LCD Monitor is perfect for playing your favourite mobile games on a bigger screen.

CONTROLS: The Touch Wizard arcade machine features Japanese made joystick and buttons. Sanwa are the world's premium arcade controllers offering years of trouble free operation. It also features additional Sanwa buttons located at the sides of the control panel to simulate the feel of playing video pinball but in a compact scale.

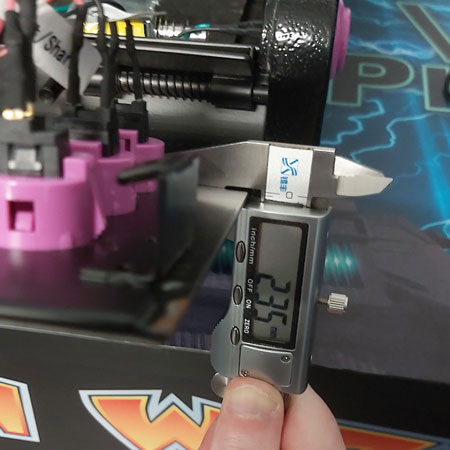

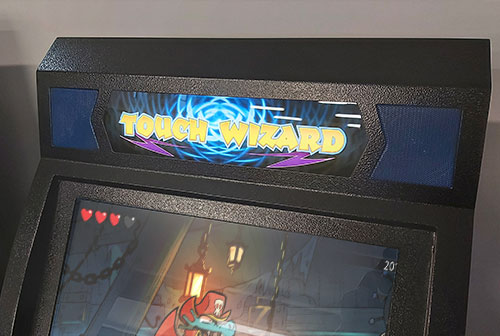

CABINET: The Touch Wizard features Up to 2mm powdercoated steel construction, with backlit acrylic panels header. It also has a 2mm powder coated steel control panel, Android motherboard with 64G storage and +5V 20A +12V 8A Power Supply.

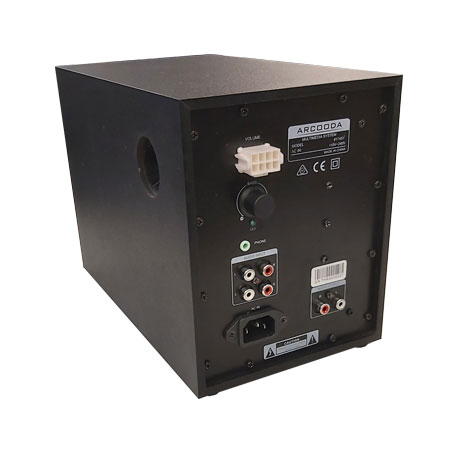

SOUND: with 2.1 audio sound system, this custom sound package was designed for arcade, including subwoofer. Adjust the sound via volume control and separate subwoofer volume control.

WIRING: The cabinet is designed with Jamma wiring system. The machine also supports JVS wiring system (optional) and Game Wizard (optional).

GAME WIZARD READY: Supports virtually all late model consoles, just plug in your XBOX One or PlayStation 4 and start playing the current games such as Street Fghter 6 with ease. Just like being in an arcade centre.

PLAY YOUR WAY: Supports almost all console controllers, play with Arcade Joystick, touchscreen or hand console controller (subject to game software support). The gaming choice is yours.

UNLIMITED GAMING: Connect your Steam, XBOX Live, Playstation Plus, Origin, Google Play store, etc… accounts and have an “all-in-one” cabinet. Never get tired of the same games.

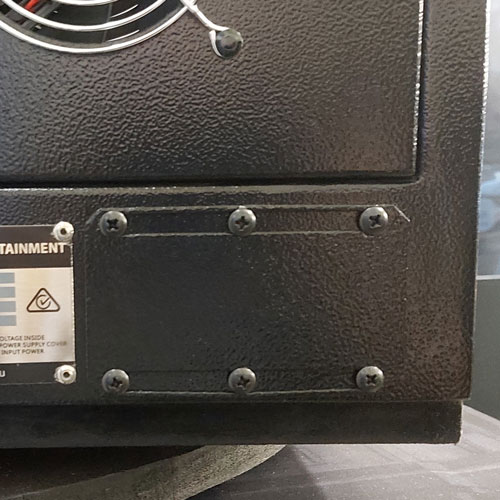

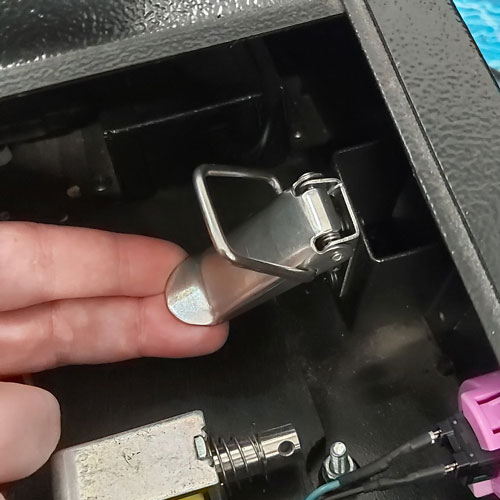

EASILY SERVICABLE: All internal designs are plug and play, no need any technician or special tools as all components are designed with plugs, and cabinet is either opened with key or latches so no need to dismantle the machine to gain access.

NEVER OBSOLETE:Regular firmware updates to ensure future console compatibility and continuous improvement to software. When new consoles are released, upgrade (free) your Touch Wizard machine to the latest console with firmware update. The Game Wizard Xtreme uses the HIGHWAY IO board, a custom designed IO board supporting the widest range of gaming options.

Upon receiving an Arcooda machine you can register it online to join the owner's community for benefits such as set up videos, firmware updates, special downloads, exclusive discounts, technical support and the owners forum.

Touch Wizard Specification

Product Information

Manufacturer Part No
Product Category

Cabinet Information

Cabinet Material
Steel (Powdercoated)
Control Panel Material
Steel (Powdercoated)
LED Cabinet Lighting
Optional Add-on
Joystick Brand
Button Brand


Color Options
Color Notes
Powercoating colours can be changed (minimum order 50pcs)

Detailed Specifications

  • 19" Touchscreen, Full High Definition 1080P (1080 x 1920) with VGA + HDMI
  • 2.0mm powdercoated steel cabinet
  • 2.0mm powdercoated steel control panel
  • 2.1 Sound System with Subwoofer

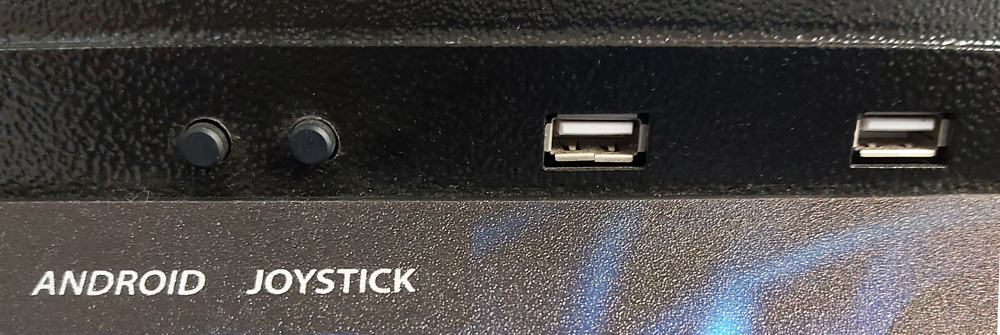

  • 2 x Front USB input/output

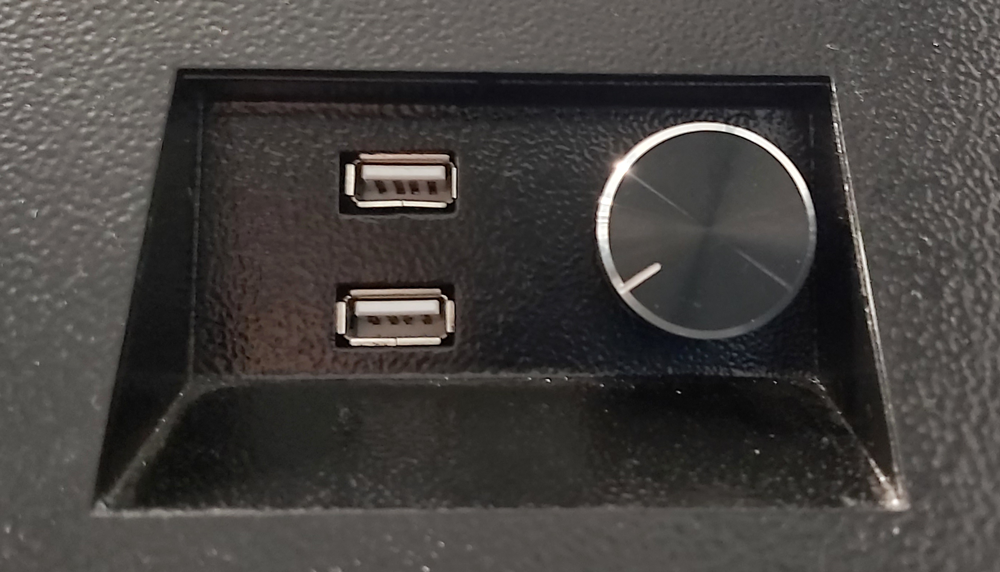

  • 1x Rear Volume Control
  • 2x Rear USB input/output
  • Programmable LED Lighting Circuit(optional addon)
  • Android motherboard with 64G storage
  • Highway IO Board (Game Wizard System)
  • Firmware 2.0 Installed (free upgrades)
  • Power Supply = +5V 20A +12V 8A
  • Sanwa Joystick Purple/Blue (JLF-TP-8YT)
  • Sanwa Purple/Blue Push Button OBSF-24 (Small)
  • Sanwa Purle/Blue Push Button OBSF-30 (Large)

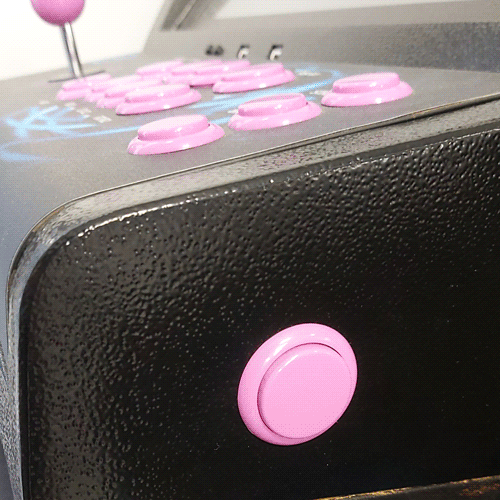

  • Pinball Push buttons on the side of the cabinet all you to play your favorite pinball games

Dimensions, Weight and Container Packing

Unboxed Details

50.0 cm
19.68 in
50.0 cm
19.68 in
58.0 cm
22.83 in
30.00 kg
66.13 lb

Carton Details

60.00 cm
23.62 in
60.00 cm
23.62 in
68.00 cm
26.77 in
33.00 kg
72.75 lb
  • Shipping Weight = 244.8 kgs

  • Shipping is with professional styrofoam internal packing and full paper carton.

Container Packing Quantities

20ft Container
40ft Container
  • 240pcs can be loaded if triple stacked vertically.

Information on technical characteristics, the delivery set, the country of manufacture and the appearance of the goods is for reference only and is based on the latest information available at the time of publication.

Included Items

  • Touch Wizard Desktop Machine
  • Free Parts (Sanwa Push Button OBSF-24, Sanwa Push Button OBSF-30(Blue or Purple depending on model)
