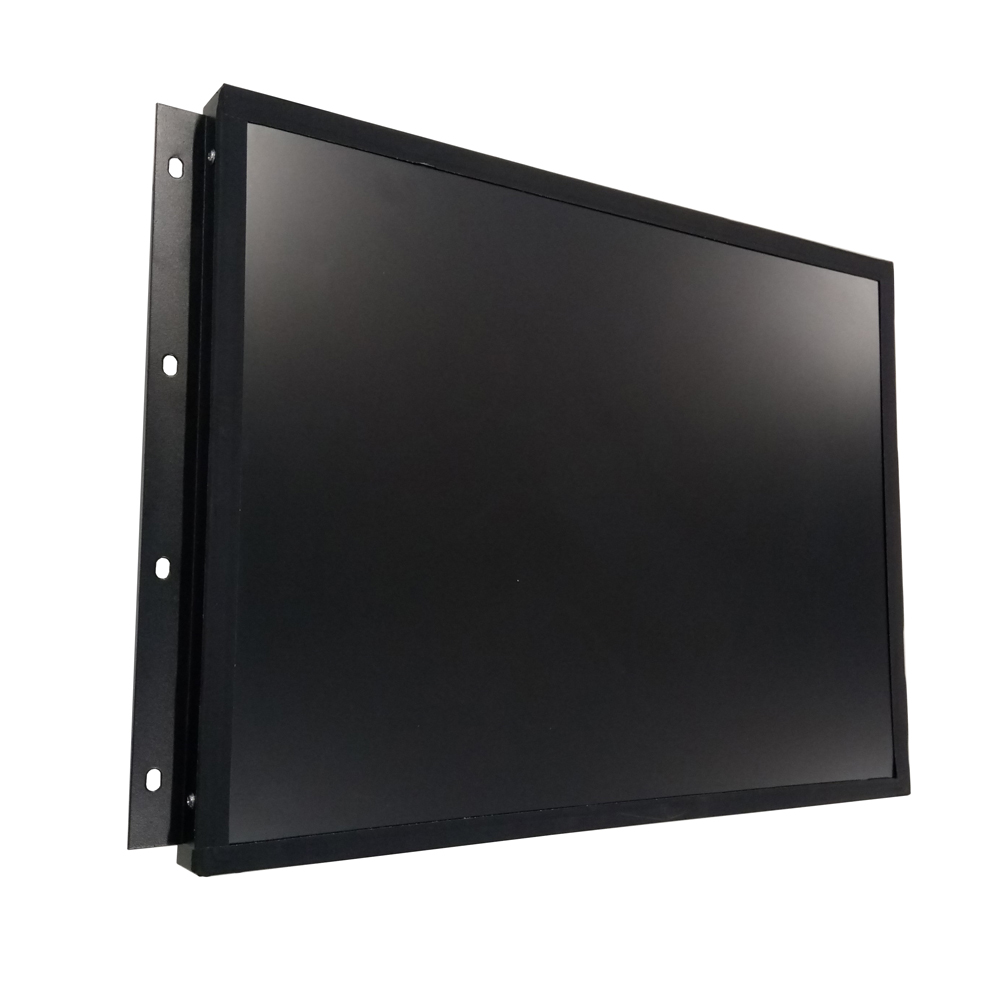

 20.1" LG 4:3 LCD Arcade Monitor  SOLD OUT

Arcooda Part Number : #17750

A professional 20.1 inch LCD Monitor designed for all arcade machines. This monitor offers a 4:3 viewing ratio with VGA and HDMI inputs and supports 15khz/31khz as well as high definition up to 1600 x 1200 UXGA resolution. Low response time, great colour depth and with full mounting frame, makes this monitor a great replacement for any arcade machine.

Input
VGAHDMI
Resolution
RGB15kRGB32k
VGA 640x80up toUXGA 1600x1200

New production scheduled for release;

Estimated February, 2023.

Please Register for Updates and Pre-Orders

Become a Distributor
10pcs minimum order
Buy from a Distributor
Arcade Ready
Monitor Specifications
Whats Included
Ports and Connections
Floating Control Board
Dimensions and Weight
Where to Purchase

Arcade Ready

Plays 15K Games

15k Games

… and High Resolution Games

Get arcade ready with the 20.1 Inch LCD Arcade Monitor!  which features LG A grade panel with 4:3 resolution, making it perfect for your old-school 15khz Jamma games as well as offering the ability to run the latest arcade games in high definition.

This professional 20.1 inch LCD arcade monitor offers RGB (15khz/31khz), VGA, and HDMI input support to a maximum resolution of UXGA 1600x1200. Together with mounting brackets and separate monitor adjustment board, installation is a breeze. Highly suitable for Lowboy machines, cocktail tables and other arcade products.

RoHs certified, this premium LCD arcade monitor comes with 2 years warranty.

Monitor Specifications

Monitor Size 20.1 inches
Resolutions RGB (15Khz/31Khz) VGA 640x480 to UXGA 1600x1200
Display Mode IPS
Colour Depth: 8bit, 16,7 M colours
Pixel Format: 1600 horizontal x 1200 vertical Pixels RGB stripe arrangement
Pixel Pitch: 0.255mm x 0.255mm
Luminance: White 300 cd/m2 (Center 1 point, Typ.)
Contrast Ratio: 800:1 (Typ.) (TM)
Response Time: 1.9 milliseconds
Viewing Angles: 89°/ 178°
Viewing-area Dimensions (cm's): 40.8(w) x 30.6(h)
Physical Ddimensions (cm's): 43.4(w) x 34.0(h) x 6.0(d)
Physical Dimensions with Mounting Frame (cm's): 48.0(w) x 34.0(h) x 6.0(d)
Weight (kg's): 5.20kg
Power: +12vDC 3.5A (100-240vAC)
Watts (w): Total 36.05 Watt(Typ.) (6.65 Watt@VLCD, 29.4 Watt@300cd/[LAMP=7mA])
Operating Temperature: TOP 0~50 °C 1
Storage Temperature: TST -20~60 °C 1
Operating Ambient Humidity: HOP 10~90 %RH 1
Storage Humidity: HST 10~90 %RH 1
Inputs: 1x HDMI
1x VGA
Accessories Included: 1x VGA Cable
1x Monitor Control PCB (12cm cable)
1x 9 Pin Extension Monitor Adjustment Harness (1.6m Cable)
2x side mounted installation brackets
1x 12volt Power supply and Power Cable

What's Included

In The Package

  • 1 x 20.1" LCD Arcade Monitor
  • 1   x Control Stick PCB (12cm cable)

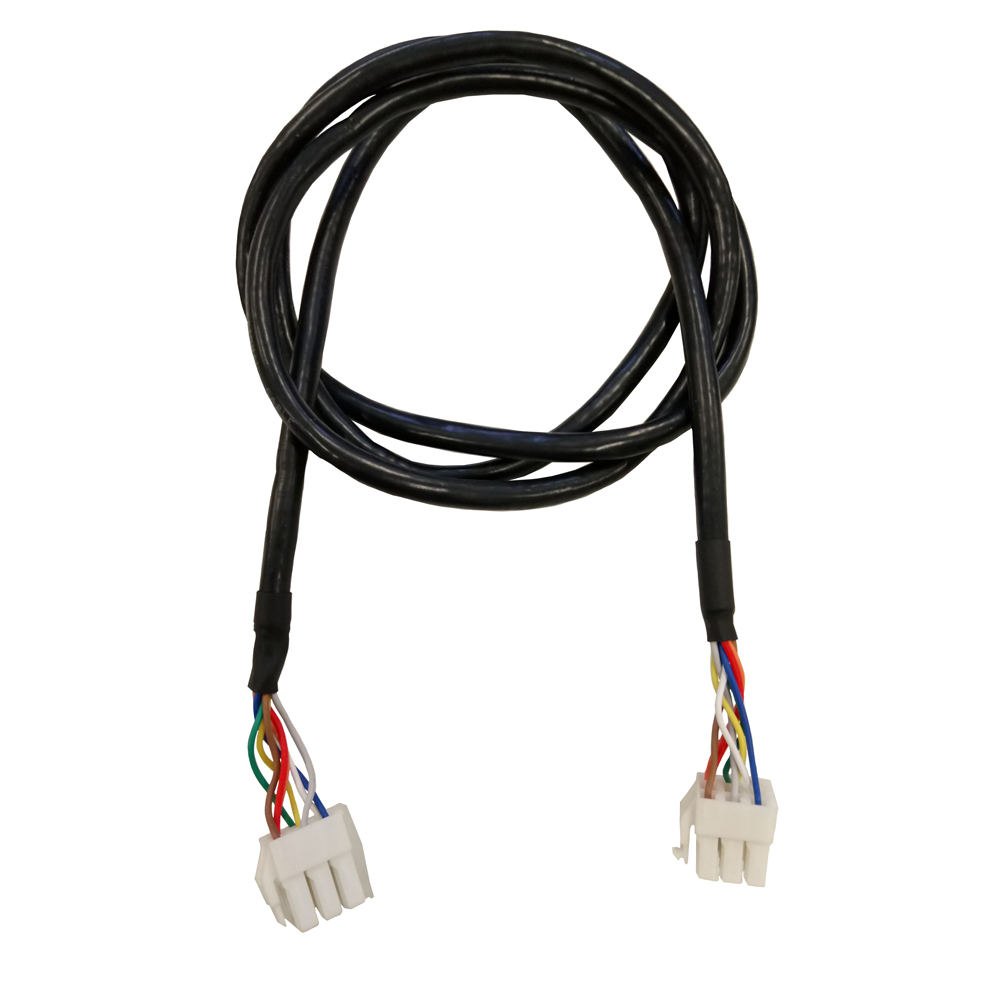

  • 1 x 9 Pin Extension Harness (1.6m Cable)

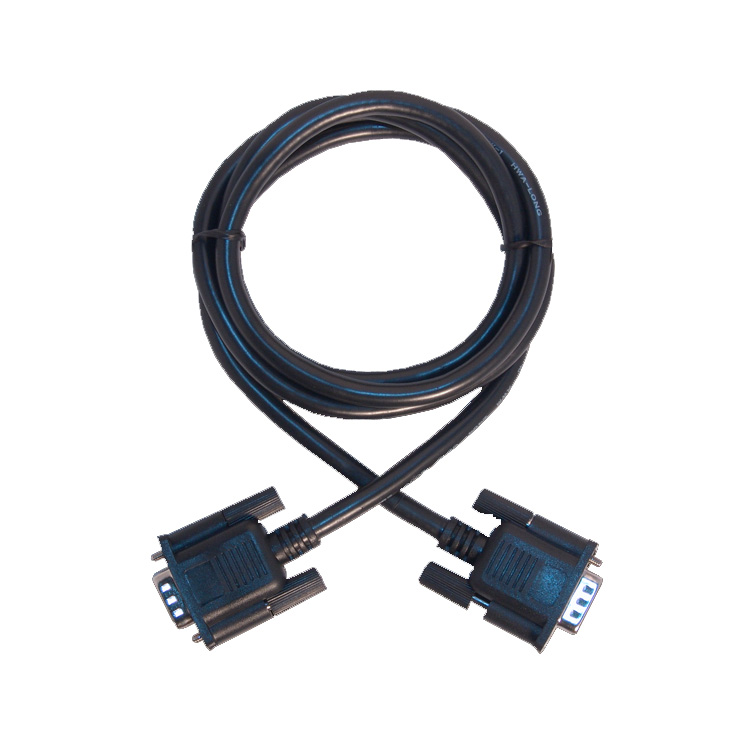

  • 1 x  VGA Cable
  • 1 x +12vDC 3.5A (100-240vAC) Power supply

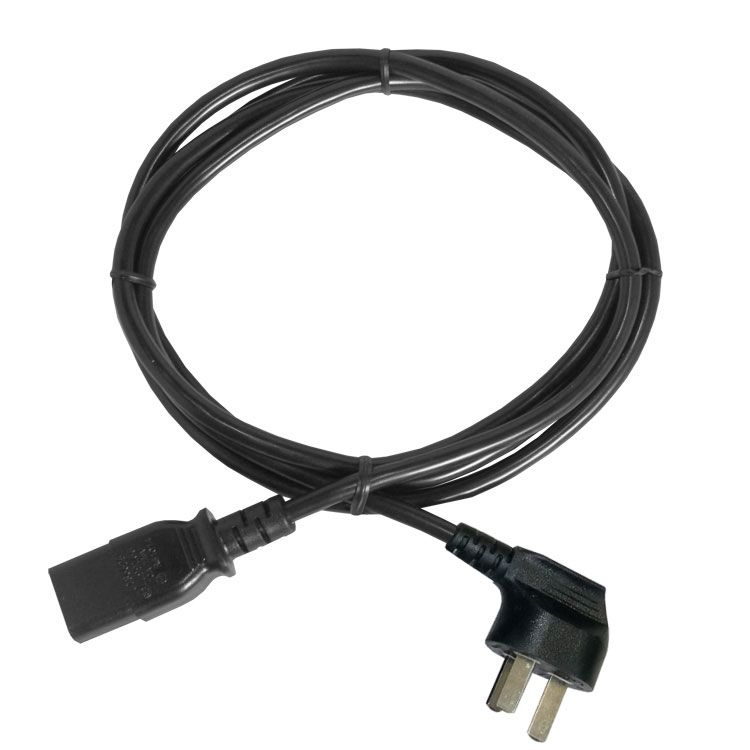

  • 1 x Power Cable
  • 2 x side mounted installation brackets

Ports and Connections

1.   9 pin Monitor Control Board Port   |   2.   HDMI Port   |   3.   Not Used   |   4.   VGA Port    |   5.   DC Power Connector

Setup is super Easy!

Connect the VGA/HDMI to your game/PC/Console, connect the monitor to your power source, and using the monitor control board, go into the settings and make your adjustment to suit your cabinet/environment.

If you are connecting RGB from your Jamma harness you will need to use an adapter board or an RGBS to VGA cable for plug and play. You can consider this optional extra board below (our RGB Jamma Adapter PCB) which supports most current Jamma wiring harness video plug output.

Floating Control Board

(with 12cm cable)

1.   Menu Button   |   2.   Navigation DOWN Button   |   3.   Power Button   |   4.   Power LED (Green/Red)    |   5.   Navigation UP Button    |   6.   Auto Button

Update the setting on your 20.1 Inch LCD Monitor in a pinch thanks to the separate control board! On the control board, press the 'menu' button to access a comprehensive OSD menu, scrolling 'up' & 'down' to highlight the display parameters. Select which input to activate on the screen and the aspect ratio to display in. Manually adjust the position and size of the image and fine-tune the visual quality and colour temperature to suit the environment. Or simply re-set the panel to factory defaults, to install and use in other display scenarios.

With the 1.6metre extension monitor control board harness, assembly the adjustment board anywhere in your machine. For bulk customers, we can customise your monitor board cable length up to 3 metres.

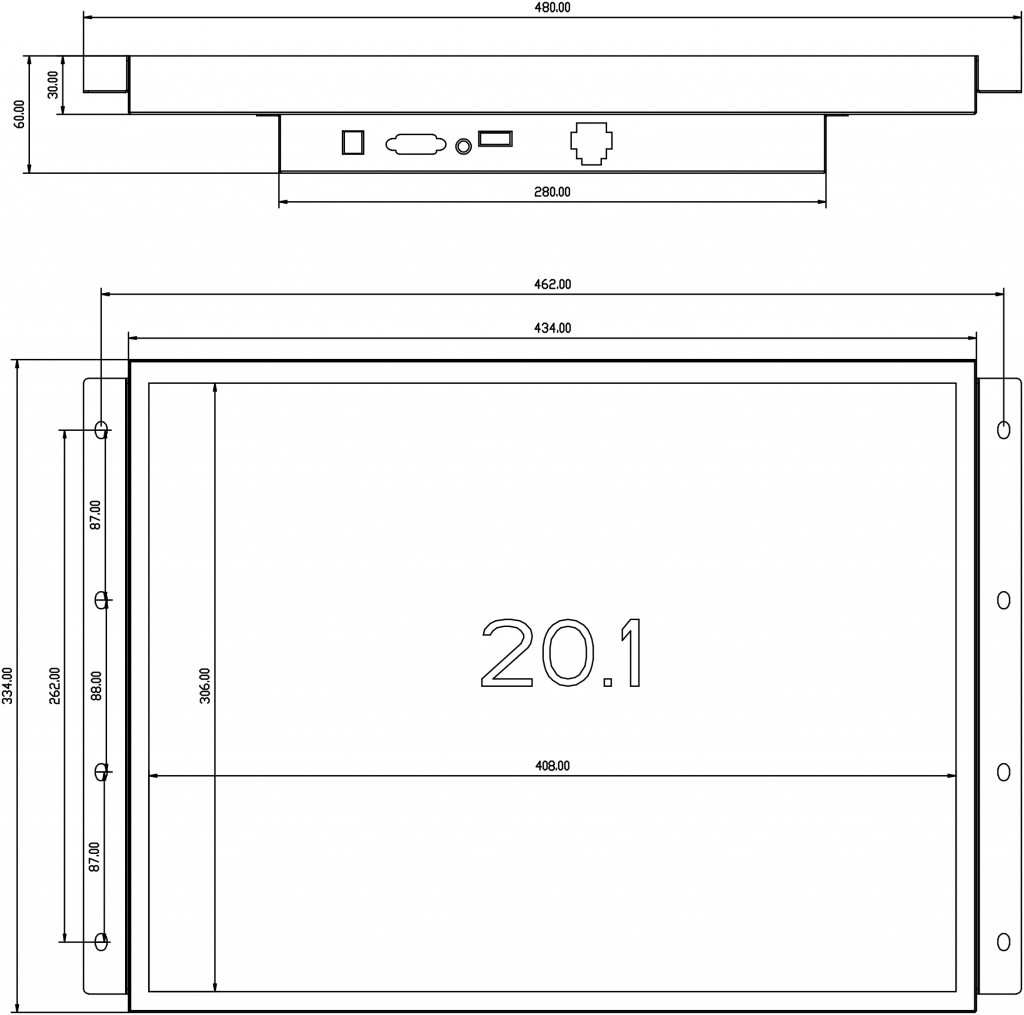

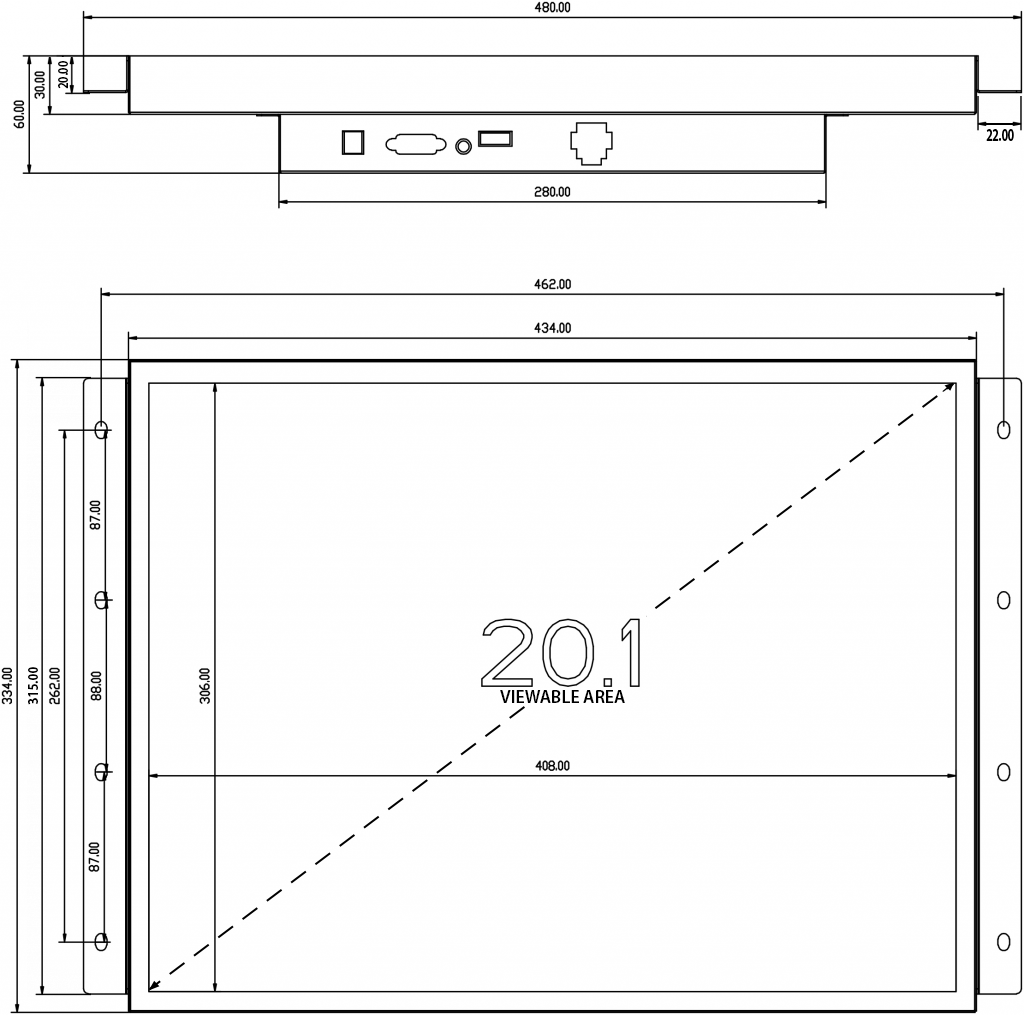

Dimensions and Weight

Viewing Area Dimensions

Height: 306mm (12.12”)   |   Width: 408mm (16.14”)

Physical Dimensions

Height: 334mm (13.4”)   |   Width: 480mm (19.3”)   |   Depth: 60mm (2.4”)   |   Weight: 5.20kg (11.46lb)

Where To Purchase

Bulk Buyer/ Become A Distributor

Looking to add LCD arcade monitors to your product range or part of your arcade machine production?  Contact our team and we will support you including correct cables/power adapters and other add-ons you might require. Minimum orders start at 10 units, with monitors available in either our China or Hong Kong warehouses.

Purchase From Distributor

Purchase from your local distributor or agent, who can also offer you local and independent advice and support.
