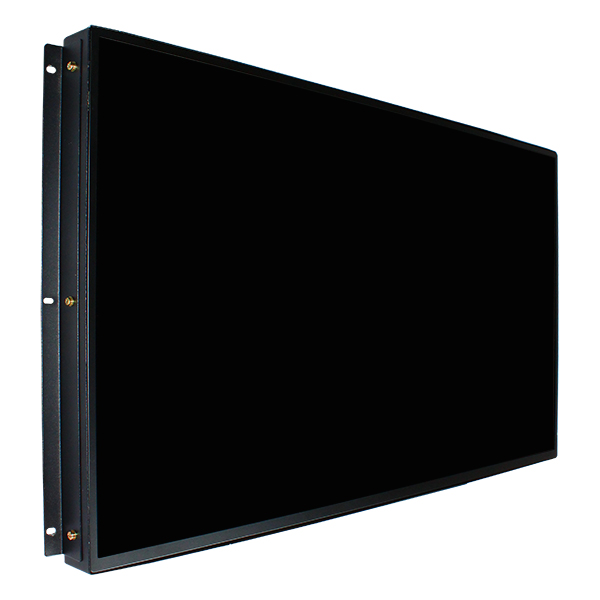

32 inch boe monitor – angle view
32 inch boe monitor – front view
15khz RGB 32inch LCD Monitor
32 inch boe monitor – back view
32 inch boe monitor – connector

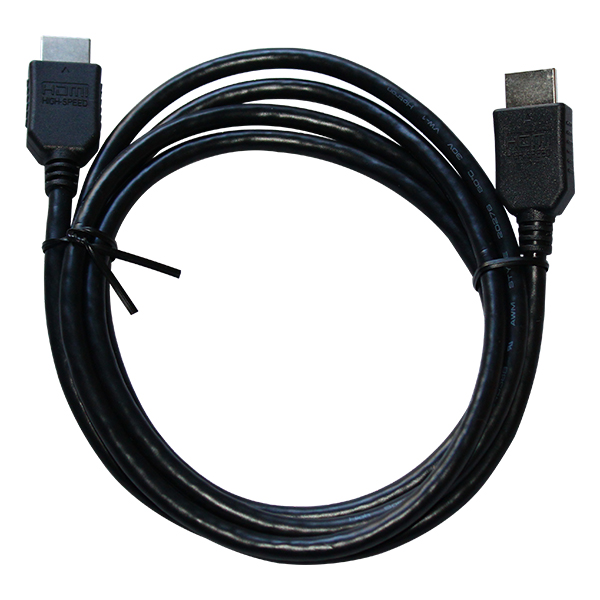

32 inch boe monitor – HDMI cable

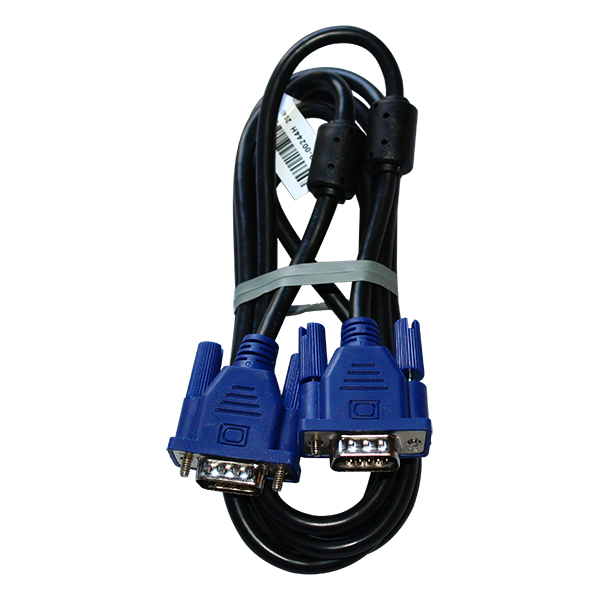

32 inch boe monitor – VGA cable
32 inch boe monitor brackets

32" BOE LCD Arcade Monitor

Arcooda Part Number : #19019

A professional 32-inch BOE LCD Arcade Monitor with full HD 1080P that is suitable for all current arcade machines. This BOE A grade arcade monitor offers 16:9 viewing ratio with VGA and HDMI inputs and supports 15khz/31khz as well as high definition up to 1920x1080 resolution. Low response time, great colour depth and with full mounting frame, makes this monitor a great replacement for any current series arcade machine.

Input
VGAHDMI
Resolution
RGB15kRGB32k
VGA 640x80up toFull HD 1900x1080

RRP: $385.00USD

Become a Distributor
10pcs minimum order
Buy from a Distributor
Arcade Ready
Monitor Specifications
Whats Included
Ports and Connections
Floating Control Board
Dimensions and Weight
Where to Purchase

Arcade Ready

The BOE 32" LCD Arcade Monitor is ready for all your arcade action! and has been specially designed for arcade machines. Featuring full HD 1080P resolution, and with both VGA and HDMI inputs, this monitor is a suitable replacement for your broken LCD arcade screen, or, a great option for your new arcade build.

With full black metal case, mounting brackets and separate monitor adjustment board, installation is super easy and little technical skill needed.  Simply plug in your game boards and cables and you're ready to go!

RoHs certified, this premium LCD arcade monitor comes with 2 years warranty.

Monitor Specifications

Monitor Size 32 inches
Resolutions RGB (15Khz/31Khz) VGA 640x480 to full HD 1920x1080
Display Mode IPS
Colour Depth: 8bit, 16,7 M colours
Pixel Format: 1920(H)×1080(V) vertical Pixels RGB stripe arrangement
Pixel Pitch: 121.25(H)×RGB×363.75(V)um
Luminance: White 400 cd/m2 (Center 1 point, Typ.)
Contrast Ratio: 1200:1 (Typ.) (TM)
Response Time: 1.9 milliseconds
Viewing Angles: 89°
Viewing-area Dimensions (cm's): 698.4(H) × 392.85 (H)mm
Physical Dimensions (cm's): 718.7(L) x 417.55(W) x 82(H) mm
Physical Dimensions with Mounting Frame (cm's): 766.20(L) x 455.05(W) x 82(H) mm
Weight (kg's): 8kg (not include the mounting plate)
Power: 100-240 volts AC
Watts (w): 40 Watt
Operating Temperature: TOP 0-60 °C
Storage Temperature: TST -20-60 °C
Operating Ambient Humidity: HOP 10-80 %RH
Storage Humidity: HST 10~80 %RH
Inputs: 1x HDMI
1x VGA
Accessories Included: 1 x HDMI Cable
1x VGA Cable
1x Control Stick PCB (80cm cable)
1x Power Cable
2x left/right mounted installation brackets
2x top/bottom mounted installation brackets

What's Included

In The Package

1 x 32" BOE LCD Arcade Monitor

1   x Monitor Control PCB

1 x HDMI (1.6m Cable)

1 x  VGA Cable

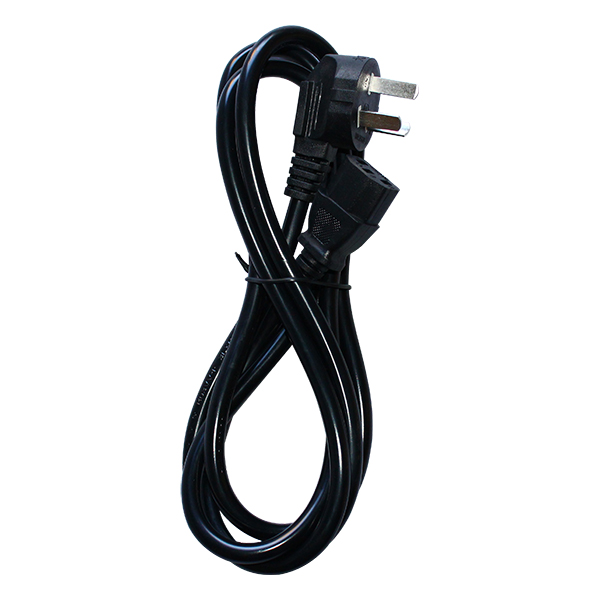

1 x Power Cable

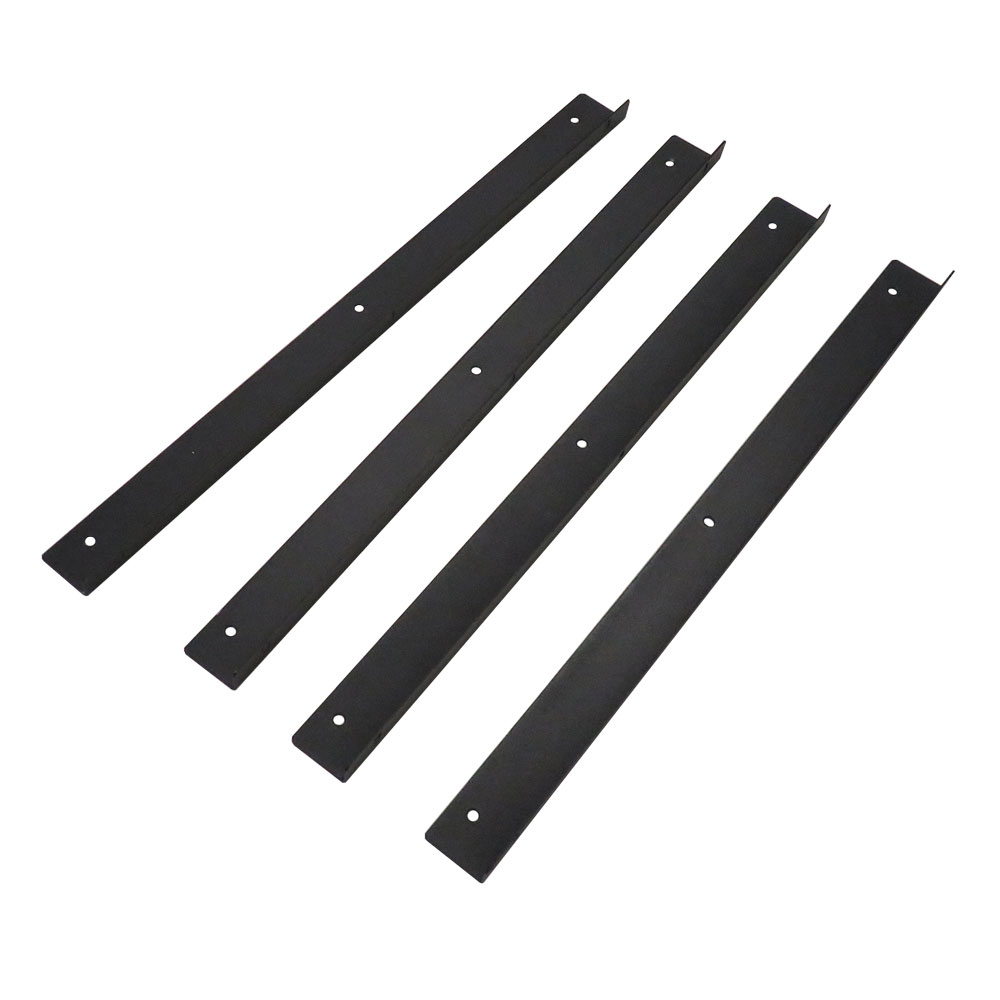

2 x Left/Right mounted installation brackets

2 x Top/Bottom mounted installation brackets

includes 12 mounting screws

Ports and Connections

1.  AC Power 110/240v input    |   2.  (not used)    |   3.   (not used)   |   4.   VGA Port    |   5.   (not used)    |   6.   HDMI Port

Setup is super Easy!

Connect the VGA/HDMI to your game/PC/Console, connect the monitor to your power source, and using the monitor control board, go into the settings and make your adjustment to suit your cabinet/environment.

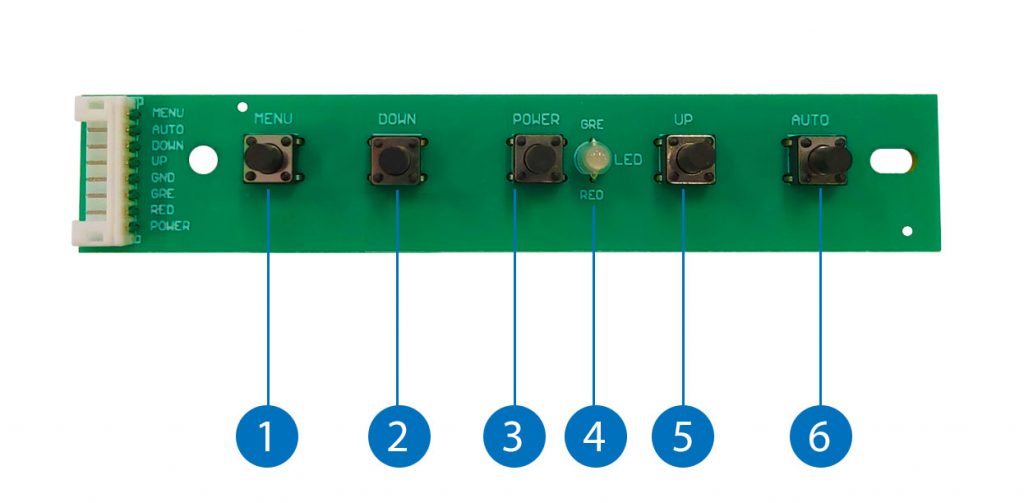

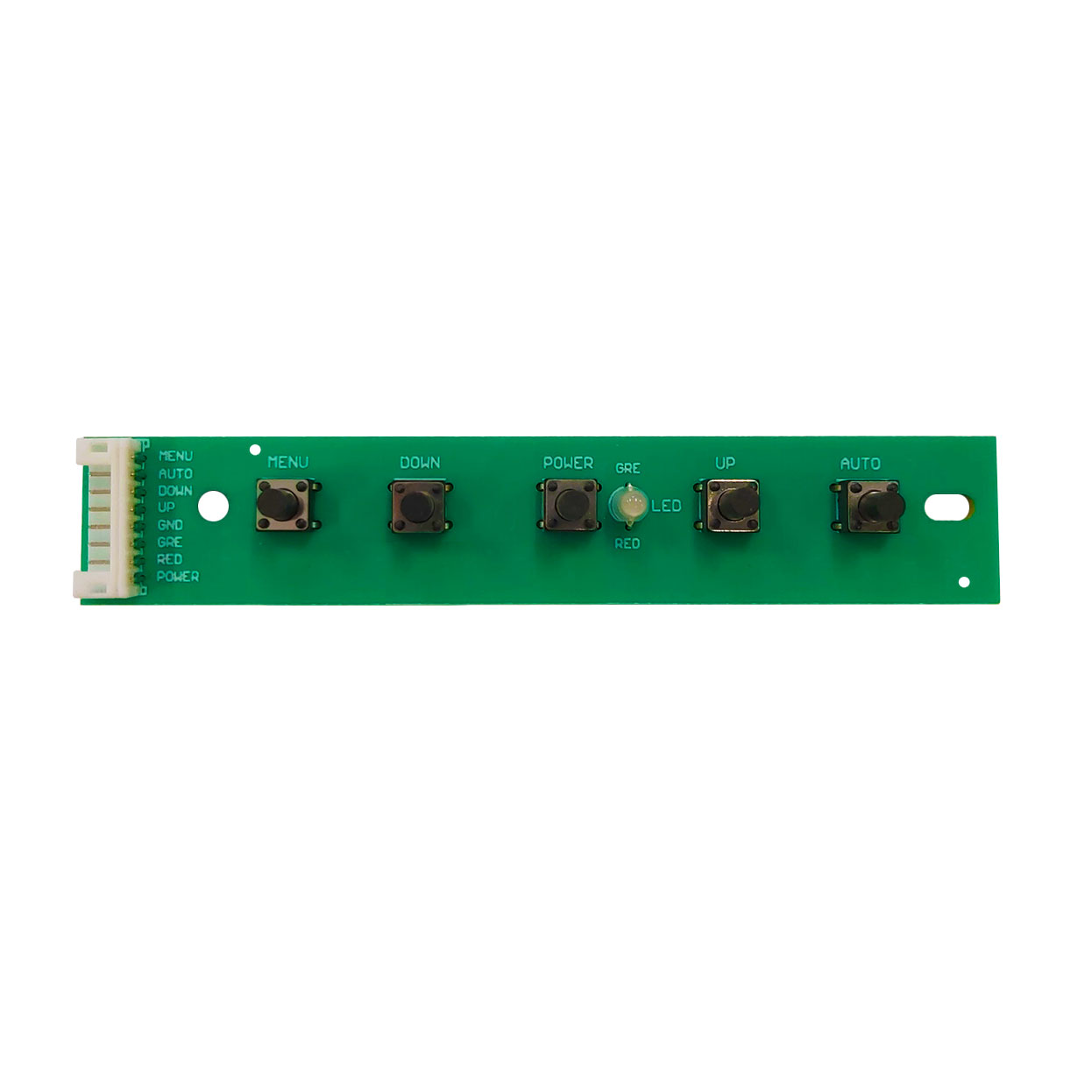

Floating Control Board

(connected via the 80cm extension cable)

1.   Menu Button   |   2.   Navigation DOWN Button   |   3.   Power Button   |   4.   Power LED (Green/Red)    |   5.   Navigation UP Button    |   6.   Auto Button

Press the 'menu' button to access a comprehensive OSD menu, scrolling 'up' & 'down' to highlight the display parameters. Select which input to activate on the screen and the aspect ratio to display in. Manually adjust the position and size of the image and fine-tune the visual quality and colour temperature to suit the environment. Or simply re-set the panel to factory defaults, to instal and use in other display scenarios.

For bulk customers, we can customise your monitor board cable length up to 3 metres.

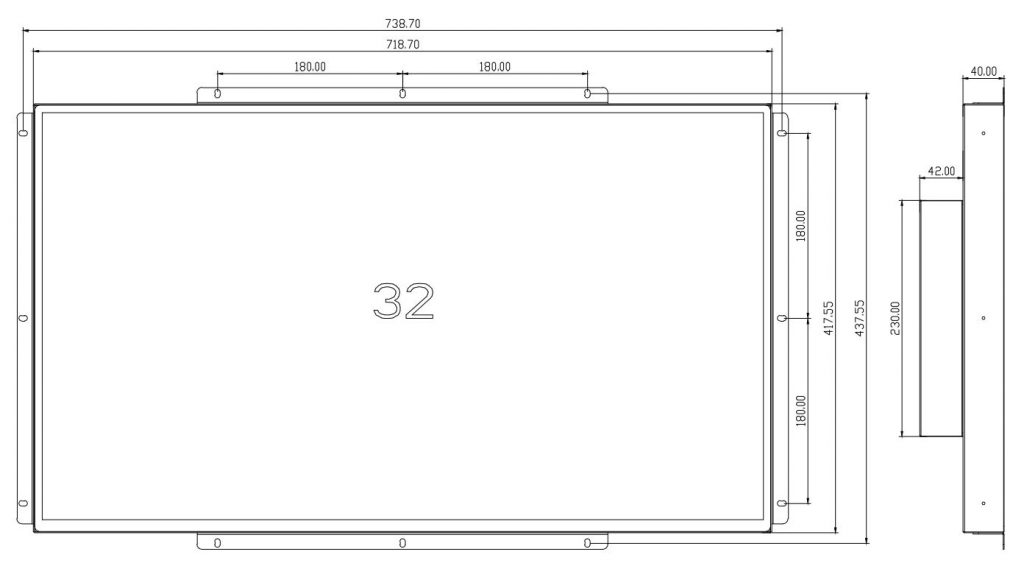

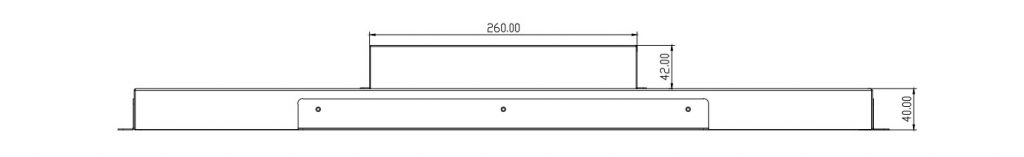

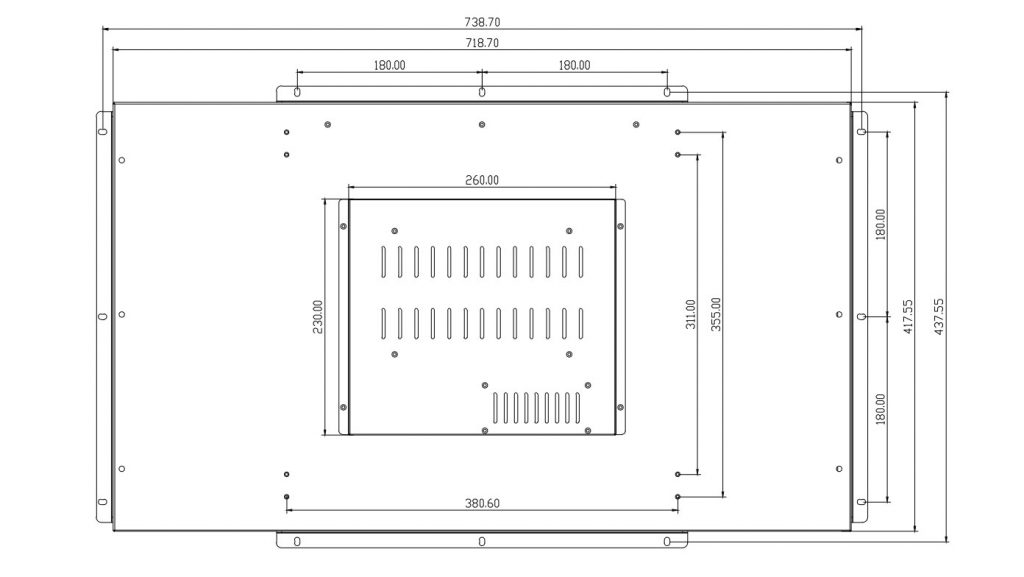

Dimensions and Weight

Viewing Area Dimensions

Height: 698.4mm (27.49”)   |   Width: 392.85mm (15.46”)

Physical Dimensions

Height: 417.55mm (16.3”)   |   Width: 718.7mm (28.2”)   |   Depth: 82mm (2.4”)   |   Weight: 8kg (17.63lb)

Where To Purchase

Bulk Buyer/ Become A Distributor

Looking to add LCD arcade monitors to your product range or part of your arcade machine production?  Contact our team and we will support you including correct cables/power adapters and other add-ons you might require. Minimum orders start at 10 units, with monitors available in either our China or Hong Kong warehouses.

Purchase From Distributor

Purchase from your local distributor or agent, who can also offer you local and independent advice and support.
