32 inch Arcooda LCD Arcade Monitor 15khz 25khz 31khz to 1080P

$385 USD
Freight Calculator

Available for online order
Availability Stock
Product No. 020013
Condition New
Product Type Original Product
Warranty 12 Months
Manufacturer Arcooda
Arcooda Part No 20013
Location China

Featured Products

32 inch Arcooda LCD Arcade Monitor 15khz 25khz 31khz to 1080P Description

A professional 32-inch Arcade LCD Monitor with full HD 1080P that has been designed for arcade machines. This A grade arcade monitor offers 16:9 viewing ratio with VGA and HDMI inputs and supports 15khz, 25khz 31khz as well as high definition up to 1920x1080 resolution. 1.3ms low response time, great colour depth, audio out and with full mounting frame, makes this monitor a great replacement for any arcade machine.

The Arcooda 32inch arcade LCD monitor is a industry designed, custom arcade monitor for use in traditional arcade gaming. It offers a number of features that include;

- VGA & HDMI input, for RGB input, use the Arcooda RGB board

- video input support offers 15khz, 25khz, 31khz, and up to 1080p at low monitor lag

- mounting frame supports the following machines Arcooda Xtreme, Arcooda Tempest, Taito Vewlix, and Chewlix arcade cabinets. It also includes VESA (16 x M6*18) mount support and side mounting brackets.

- many monitor adjustments that include auto-picture, fine tuning options and viewing ratios (keep the 4:3 ratio or display at 16:9).

- extendable monitor adjustment board. Mount in the monitor frame, or, use the extension to mount at the front of your arcade machine.

The Arcooda 32" LCD Arcade Monitor is ready for all your arcade action and has been specially designed for arcade machines without the need for video converters. With full black metal case, mounting brackets and separate monitor adjustment board, installation is super easy and little technical skill needed. Simply plug in your game boards and cables and you're ready to go!

RoHs certified, this premium LCD arcade monitor comes with 12 months warranty.


V30 Firmware
- a wider range of 15khz arcade game board titles supported including 50,54 60 and 70Hz titles such as NBA Jam / Mortal Kombat, supports 24khz game titles such as Daytona USA & Virtua Striker, and all 31khz titles up to 1080P.
- offers 7 menu languages, updated auto picture functions, quicker transition between video signal resolutions, and more.

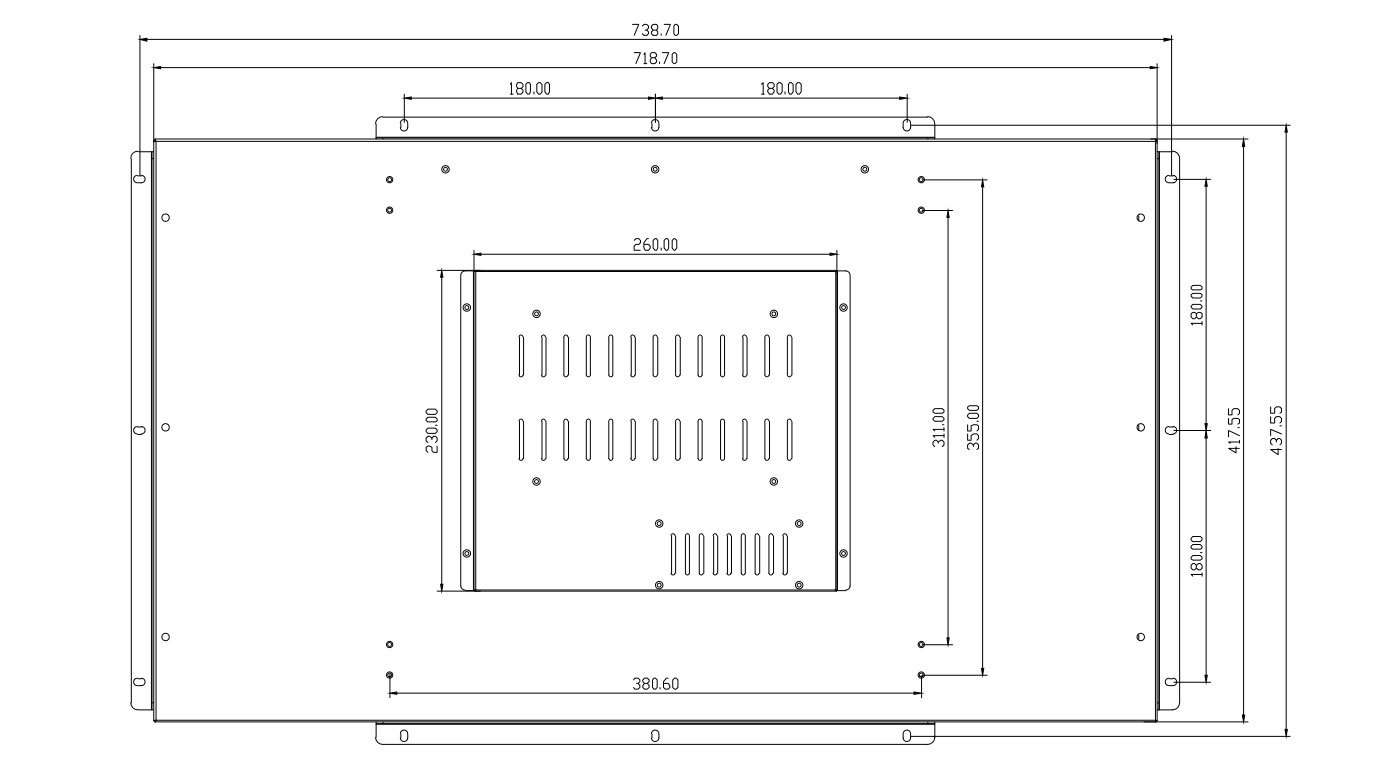

4 Mounting Options + Monitor Panel Management
- 4 cabinet mounting angle brackets to suit timber or steel cabinets
- Xtreme / Vewlix / Chewlix horizontal and vertical mounting via M6
- VESA 75mm, 100mm and 200mm mounting via M6
- Xtreme frame, or custom glass frame mounting via M4
- Left and right add-on PCB mounting positions
- Cable management support with 4 mounting positions

Audio Output Support
- connect your HDMI input into the Arcooda 32inch arcade LCD monitor, then connect your 3.5mm audio jack out of the monitor into your audio system.

Xtreme Vewlix Chewlix Frame
- The 32inch LCD arcade monitor has now a wider casing design so that it can mount directly into Taito Vewlix, Chewlix, or Game Wizard Xtreme 1.0, 2.0 and 3.0 arcade cabinets.

Breakout OSD Menu Board (included)
- access the monitor menu via the regular monitor buttons on the metal cabinet, or, use the 160cm extension cable to mount a secondary monitor adjustment board anywhere in your cabinet. No longer do you need a second person to help adjust the monitor settings.

32 inch Arcooda LCD Arcade Monitor 15khz 25khz 31khz to 1080P Specification

Product Information

Manufacturer Part No
Product Type
Original Product
Product Category

Detailed Specifications

  • Monitor Size : 32 inches
  • Resolutions : RGB (15Khz/25khz/31Khz) VGA 640x480 to full HD 1920x1080
  • Display Mode : 1920x1080
  • Colour Depth : 8bit, 16,7 M colours
  • Pixel Format : 1920(H) 1080(V) vertical Pixels RGB stripe arrangement
  • Pixel Pitch : 121.25(H) RGB—363.75(V)um
  • Luminance : White 300 cd/m2 (Center 1 point, Typ.)
  • Contrast Ratio : 1200:1 (Typ.) (TM)
  • Response Time : 1.3 milliseconds
  • Viewing Angles : 89°

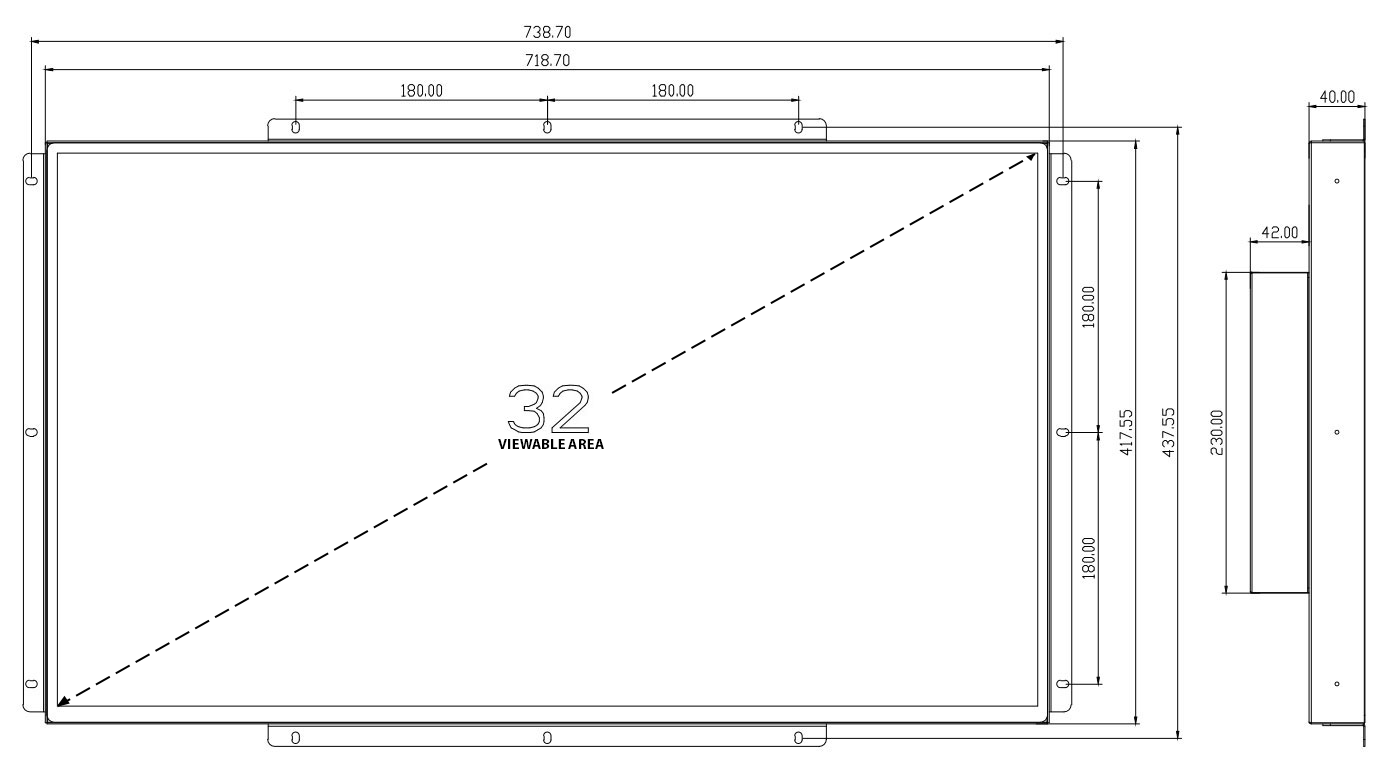

  • Viewing-area Dimensions (cm's) : 698.4(H) x 392.85 (H)mm
  • Physical Dimensions (cm's) : 718.7(L) x 417.55(W) x 82(H)mm
  • Physical Dimensions with Mounting Frame (cm's) : 766.20(L) x 455.05(W) x 82(H)mm
  • Weight (kg's) : 8kg (not include the mounting plate)
  • Power : 100-240 volts AC
  • Watts (w) : 40 Watt
  • Operating Temperature : TOP 0-60 °C
  • Storage Temperature : TST -20-60 °C
  • Operating Ambient Humidity : HOP 10-80 RH
  • Storage Humidity : HST 10~80 RH

Dimensions, Weight and Container Packing

Unboxed Details

10.0 cm
3.93 in
71.9 cm
28.30 in
41.8 cm
16.45 in
8.00 kg
17.63 lb

Carton Details

21.00 cm
8.26 in
82.00 cm
32.28 in
56.00 cm
22.04 in
12.00 kg
26.45 lb
  • Shipping Weight = 19.2864 kgs

Information on technical characteristics, the delivery set, the country of manufacture and the appearance of the goods is for reference only and is based on the latest information available at the time of publication.

Included Items

  • 1x 32inch Professional Arcade LCD Monitor
  • 1x HDMI Cable
  • 1x VGA Cable
  • 1x Breakout Monitor Adjustment Board
  • 1x Monitor Adjustment Board 160cm extension cable
  • 1x Power Cable
  • 2x left/right mounted installation brackets
  • 2x top/bottom mounted installation brackets

Arcade Machine Matching

This 32 inch Arcooda LCD Arcade Monitor 15khz 25khz 31khz to 1080P is compatible spare part of the below arcade machines
