35 inch Arcooda 4:3 Ratio Arcade LCD Monitor 15khz 24khz 31khz up to 1440x1080
35 inch Arcooda 4:3 Ratio Arcade LCD Monitor 15khz 24khz 31khz up to 1440x1080 Description
Our largest 4:3 1440x1080 resolution Arcooda LCD arcade monitor is a massive 35inches, making it perfect to replace your CRT tube or rear projection arcade monitors. Supports native 15khz, 24khz and 31khz arcade games as well as offering the ability to run the latest arcade games in high definition. Highly suitable for Pedestal, split screen, showcase cabinets, as well as driving and arcade cabinets with larger CRT tube monitors.
ARCADE MACHINE & GAMING INDUSTRY
This is our recommended 35inch monitor for arcade machine restoration/building as color reproduction has been tuned to our highly regarded 32inch 16:9 ratio arcade monitor. It is perfectly suited for 38inch CRT tube monitor replacement.
HOME RETRO & PC GAMING
PLEASE NOTE: this monitor has a slightly wider bezel compared to our 35inch 2880x2160 monitor. Please refer to photos.
The Arcooda arcade monitor firmware has been refined over many years.
35 inch Arcooda 4:3 Ratio Arcade LCD Monitor 15khz 24khz 31khz up to 1440x1080 Specification
Product Information
Detailed Specifications
- Diagonal Size : 35 inches
- Display Type : WLED
- Display Lag : 1.5ms
- Inputs : VGA, DVI, HDMI, DisplayPort
- Resolutions : 150+ pre-programmed settings including 15Khz/24khz/31Khz, 240p, VGA 640x480 to 1440x1080
- Display Size : 70.74cm x 53.1cm
- Overall Size : 76.38cm x 56.76cm x 8cm
- Refresh Rate: 60Hz
- Brightness: 700 cd/m²
- Contrast Ratio : 1000:1
- Aspect Ratio: 4:3
- Viewing Angles : 89°/89°/89°/89°
- VESA Support : 75x75mm / 100x100mm / 200x200mm
- Input Voltage : 12V
- Min Operating Temperature : 0°C
- Max Operating Temperature : 50 °C
Dimensions, Weight and Container Packing
|
Unboxed Details Depth
8.0 cm
3.14 in
Width
76.4 cm
30.07 in
Height
56.8 cm
22.36 in
Weight
12.50 kg
27.55 lb
|
Carton Packing Details Depth
18.00 cm
7.08 in
Width
85.00 cm
33.46 in
Height
71.00 cm
27.95 in
Weight
15.00 kg
33.06 lb
|
Shipping Weight = 21.726 kgs

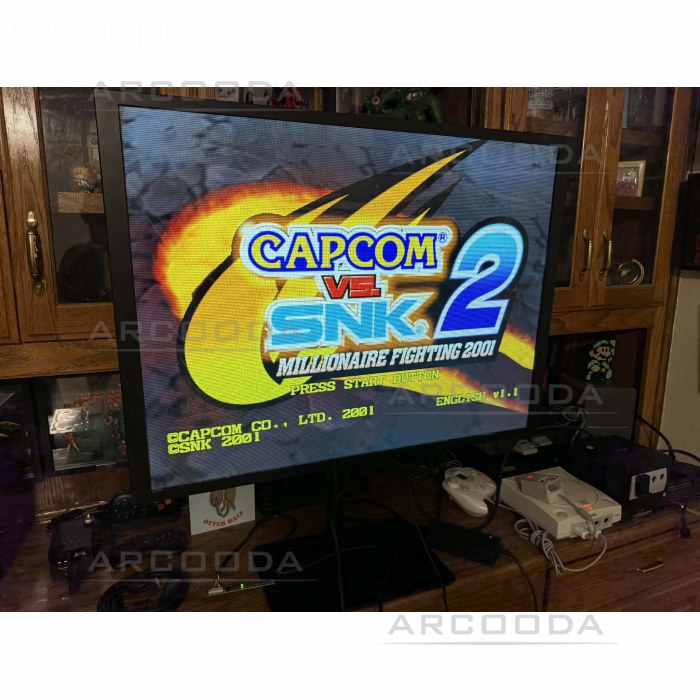

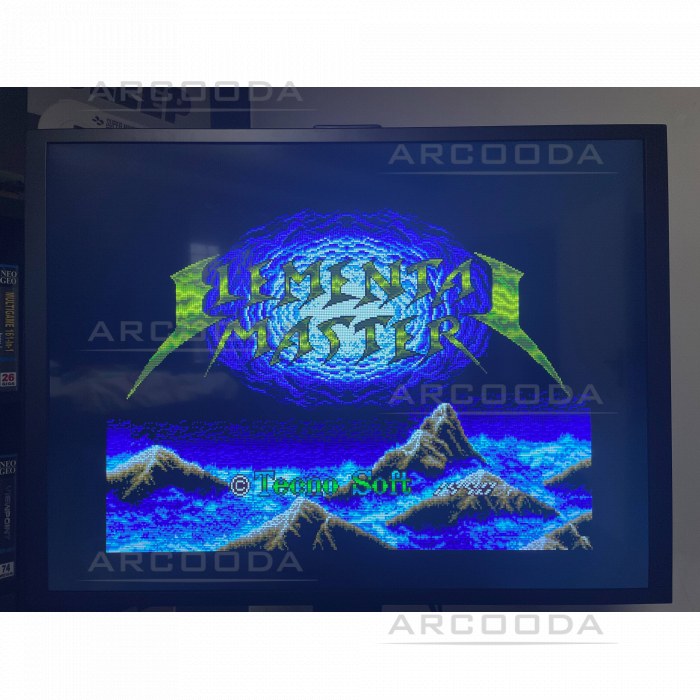

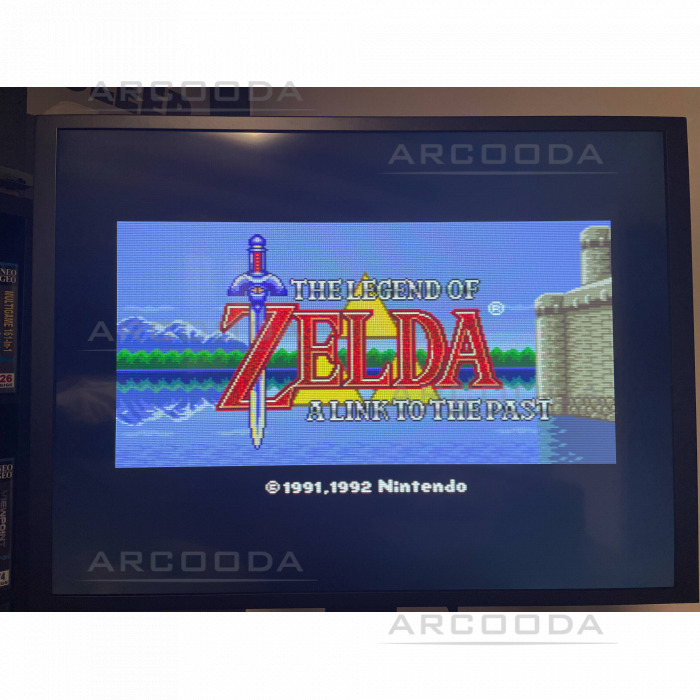

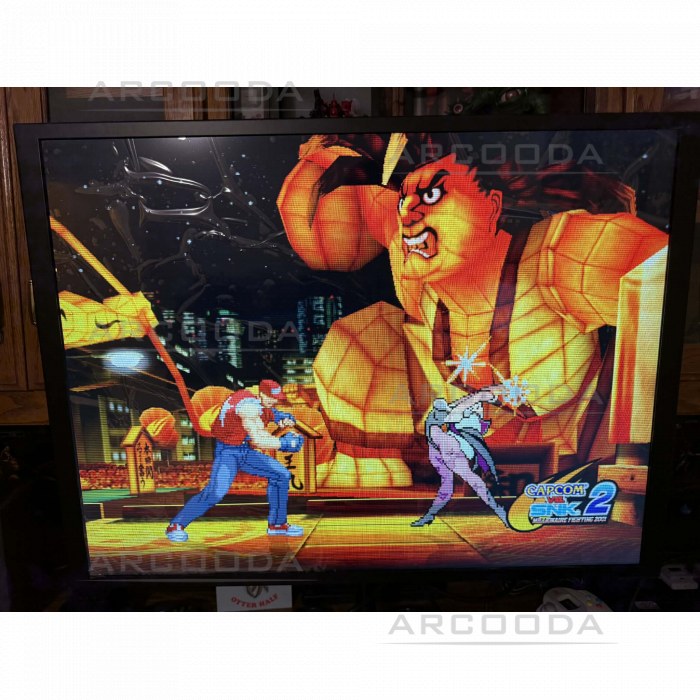

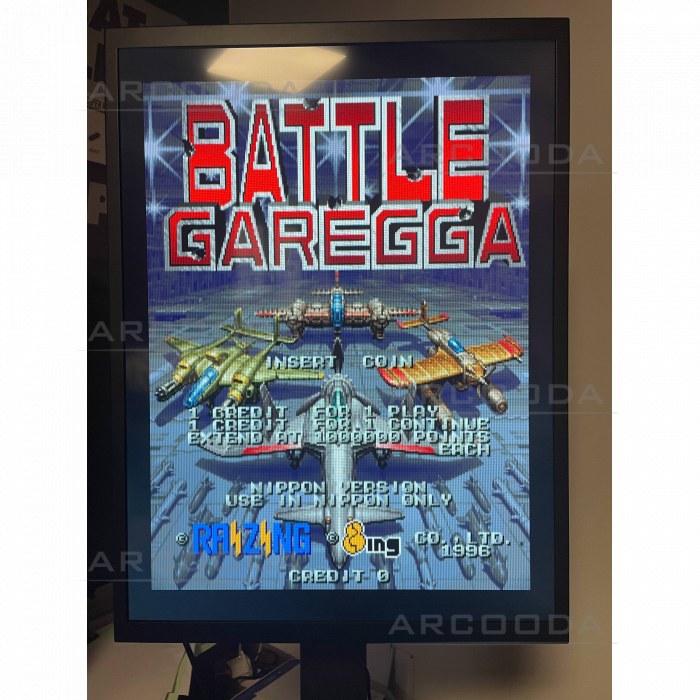

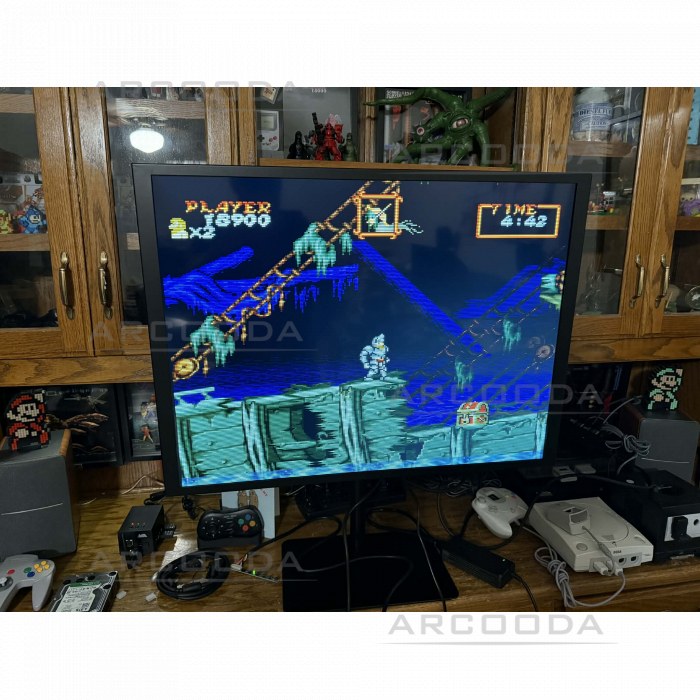

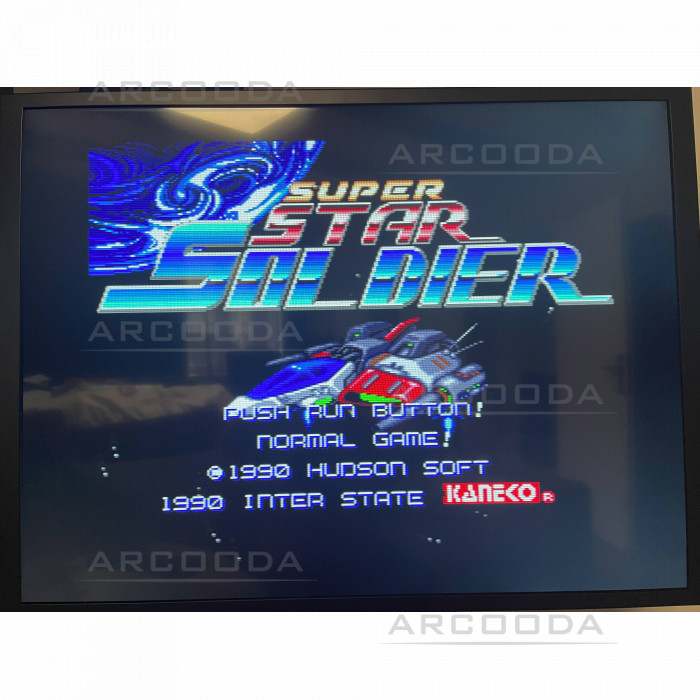

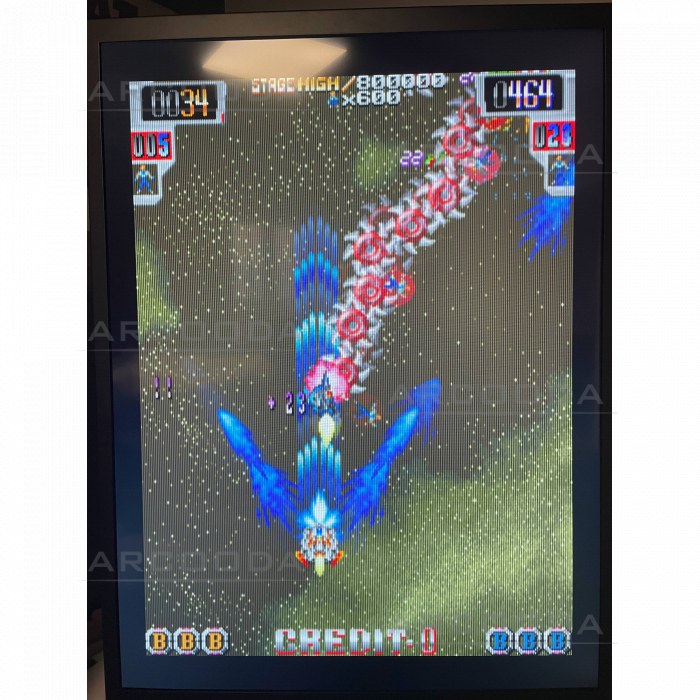

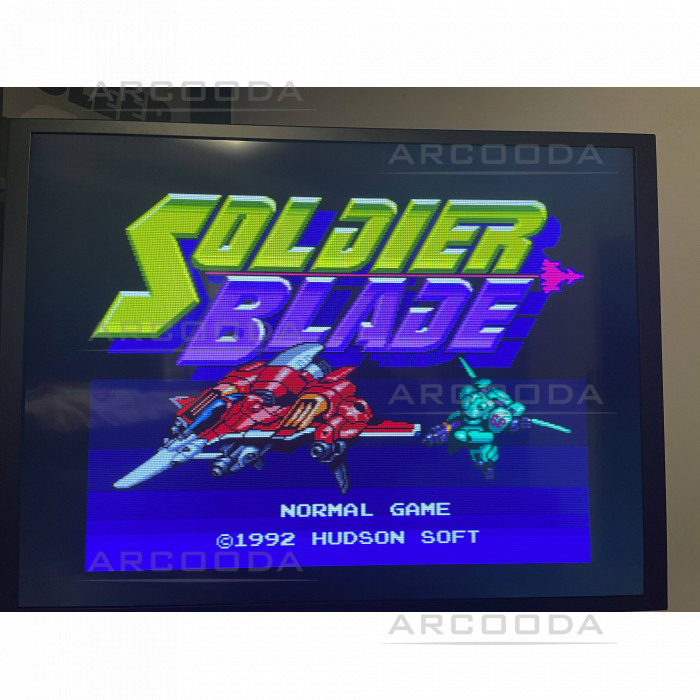

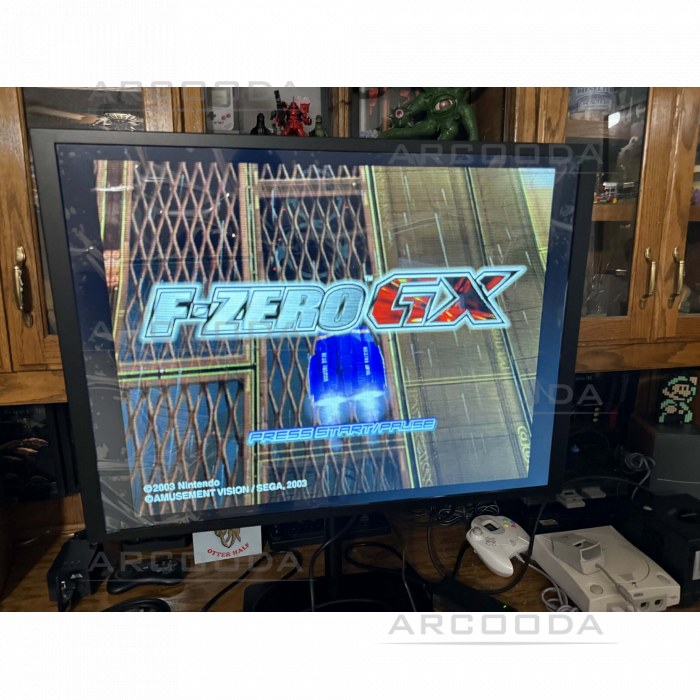

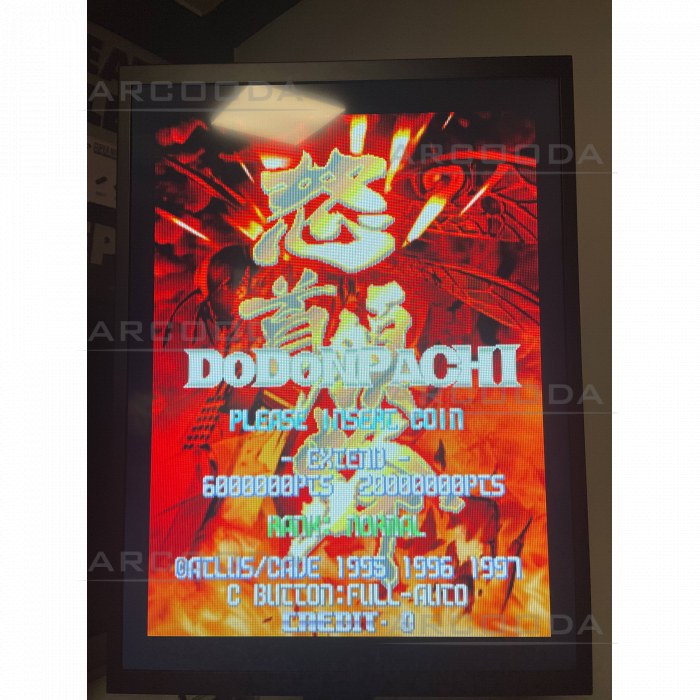

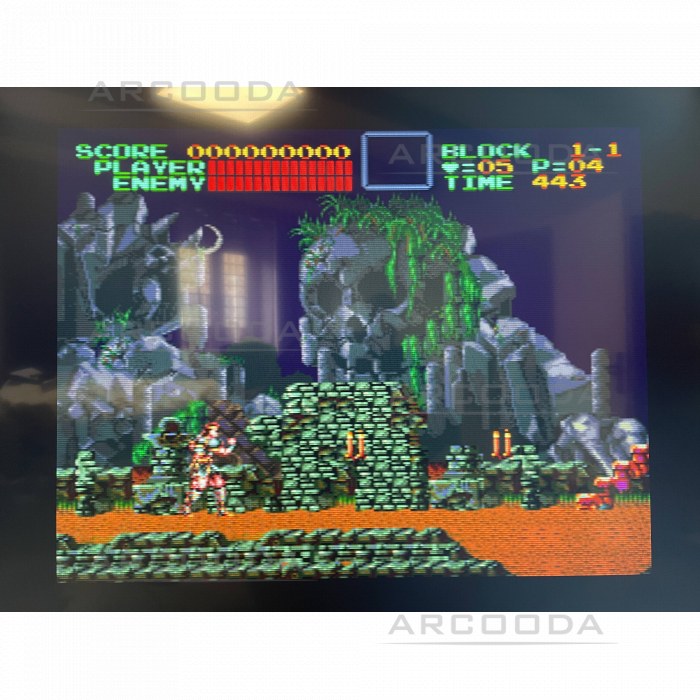

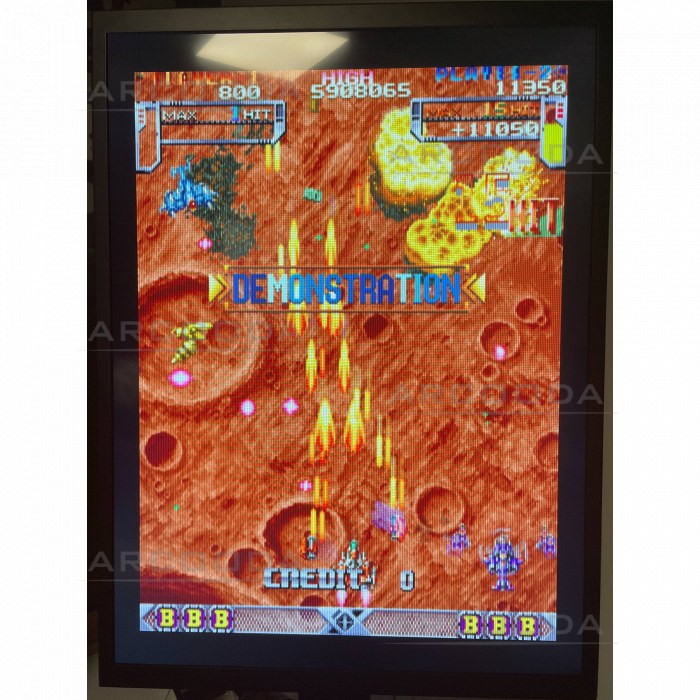

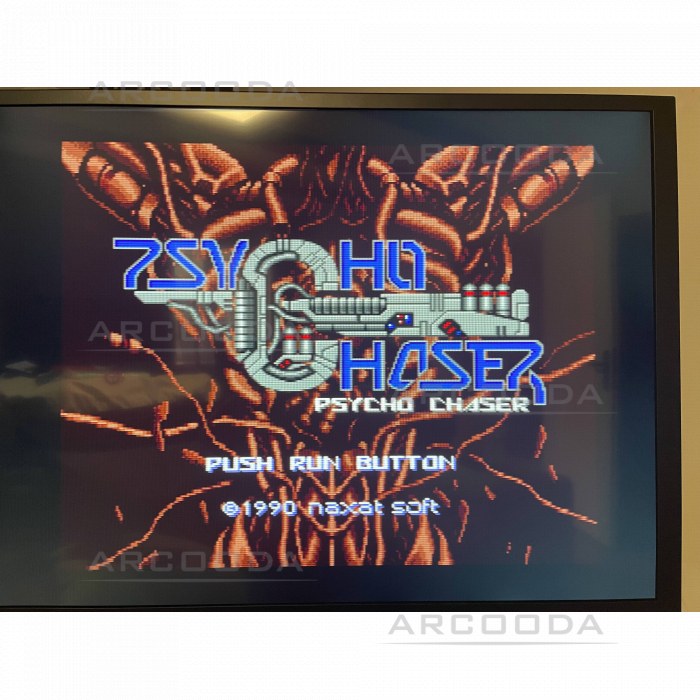

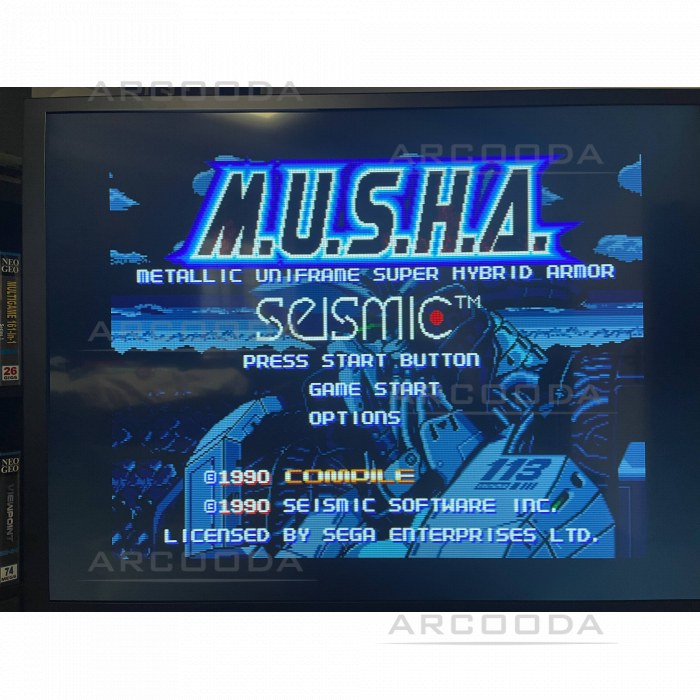

Absolutely stunning display. You would be hard pressed to find anything else on the market that comes close. The moment you boot into a native 4:3 game you will never want to go back to letterboxed 16:9. There are a couple of minor issues with the panel, mainly two small light leaks on the right side when showing a full black screen, could be a my unit issues or a shipping problem I did notice the tracking delivery photo was upright but when I finally got to the box it was faced down on the floor. During actual gameplay over HDMI or DisplayPort you will never notice them. The OSD can feel a bit finicky at first, but once you understand how selection and adjustments work it has been completely reliable for me
This is the best 4:3 monitor on earth- I have been using 19 and 20 inch EDTVs or monitors for mister for so many years but I always wanted something larger but could never find one without getting a widescreen but then you would have black bars-
This monitor is a dream come true and works perfect with mister and no weird issues like how i had on my EDTV with different refresh rates and random unsupported signal black screens
MISTER fills the entire screen as long as you set a few simple scaling settings in the ini file (#4 scaling setting) and retrogem hdmi consoles look fantastic on it too. Everything is perfect integer scaled and looks insanely crisp
This was absolutely worth every penny and the shipping time actually wasnt that bad either and was packaged perfectly
Arcooda sells a stand for these monitors and they are built like a tank-super heavy and sturdy
If you want to play retro games on a 4:3 monitor there really is NO better option on this planet.
Included Items
- 1x 35inch 4:3 1440x1080 Arcade LCD Monitor
- 1x HDMI Cable
- 1x VGA Cable
- 1x Power Cable
- 4x Mounted Installation Brackets
