Tempest 32 inch Arcade Cabinet Upright UR

$1,895 USD
Please Ask
Freight Estimate




Available for online order
Availability Please Ask
Product No. 020042
Condition New
Product Type Original Product
Warranty 12 Months
Coin Operated Yes
Product Series Game Wizard
Manufacturer Arcooda
Arcooda Part No 19266
Location China

Featured Products

Tempest 32 inch Arcade Cabinet Upright UR Description

Enjoy traditional arcade gaming, console gaming, VR, gun shooting and more with the Tempest 32inch arcade cabinet upright. This premium steel cabinet is designed for arcade gamers and features a 32 inch 15/31khz + 1080P HD LCD Monitor, Japanese Sanwa joystick and buttons, 2.1 sound system, full cabinet lighting effects, with easy upgrades.

Key features on the Tempest sitdown arcade machine include;

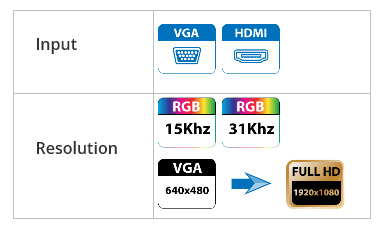

MONITOR: supports 15khz, 31khz, and up to 1080P HD inputs via VGA and HDMI inputs. This monitor has been designed for arcade gamers featuring 1.3ms response time at 1080P. Monitor adjustments are at the front of the machine for easy handling.

SOUND: with 2.1 audio sound system, this custom sound package was designed for arcade, including subwoofer. Adjust the sound via volume control and separate subwoofer volume control.

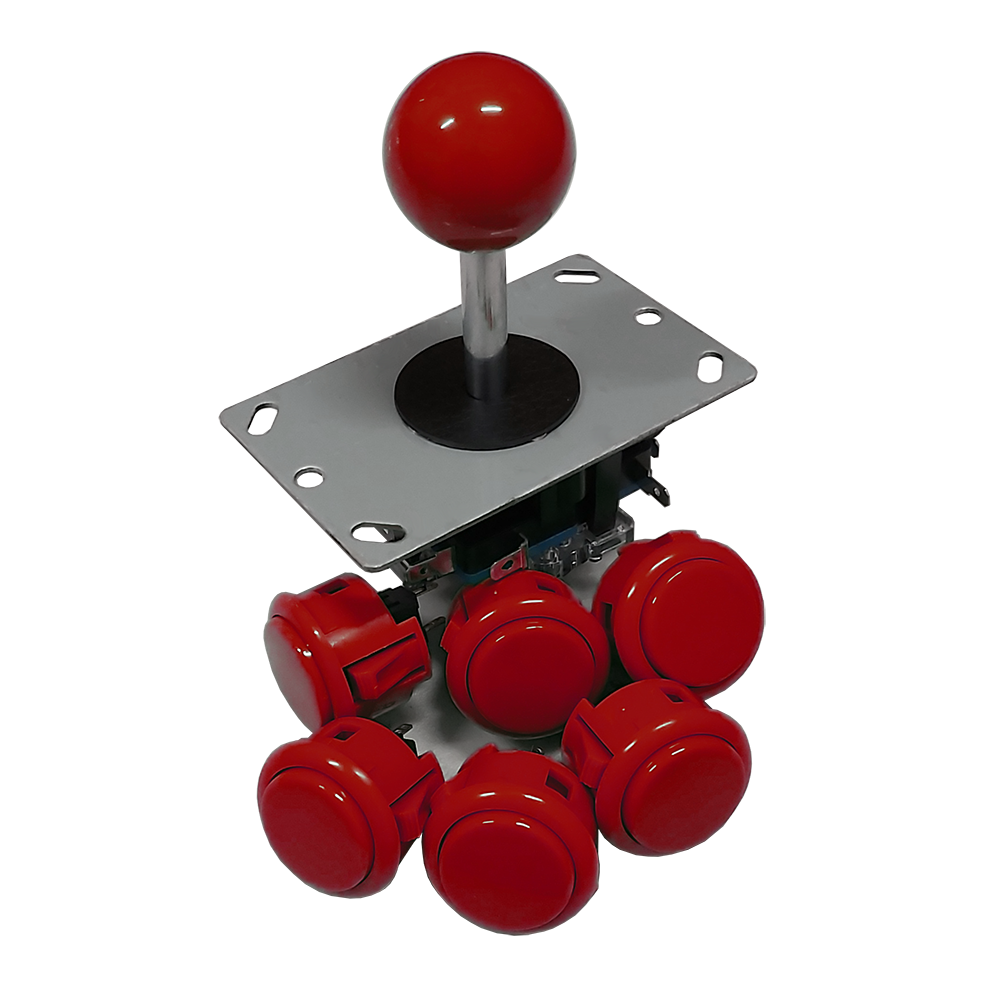

CONTROLS: Tempest arcade machine features Japanese made joystick and buttons. Sanwa are the world's premium arcade controllers offering years of trouble free operation.

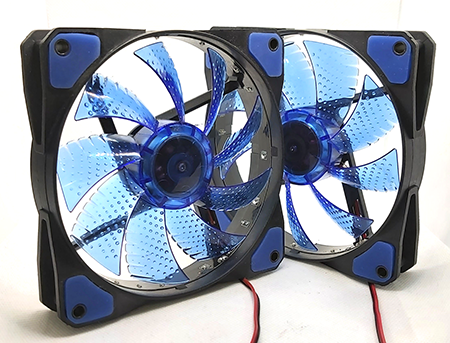

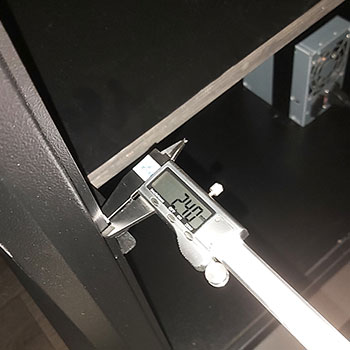

CABINET: Up to 2mm powdercoated steel construction, with acrylic panels. Internally, the machine is layered allowing you to update your machine at any time with the Arcooda Game Wizard add-on, or add your own internal functions. With industry standard wheels and screw down feet, Tempest arcade also includes 6 input power board, +5V 20A +12V 8A power supply, 2x 12volt fans.

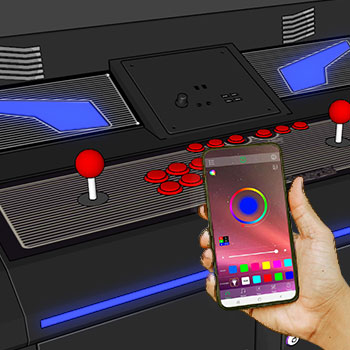

LIGHTING: programmable 12volt LED lighting circuit controlled via bluetooth phone app, remote control or internal controller. Choose the colour of light, brightness, or pattern. There are 2 lighting circuits - one for the control panel, the other for the cabinet body, turn one off, both off, with different patterns, or same pattern.

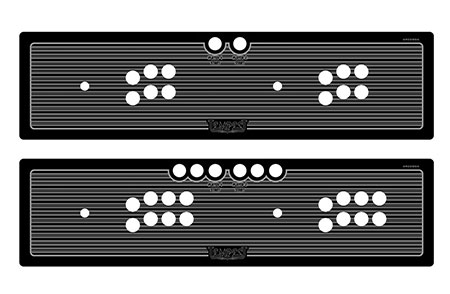

CONTROL PANEL: comes as standard arcade 2 player, 6 buttons per side. However the panel is upgradeable, where you can remove metal holders and make this as a 8 button per player control panel, or, fully Arcooda featured with the Game Wizard options (home, back, start extra buttons per player).

The following optional add-ons are available directly from Arcooda;

- Tempest Upright Monitor Addon: Includes a 14.9 HD Monitor and everything you need to plug and play with a second monitor on your Tempest Upright Arcade Machine.

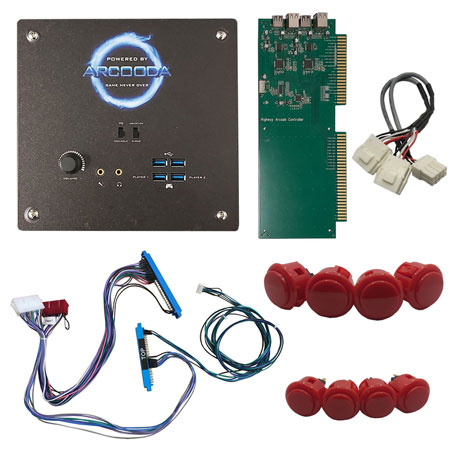

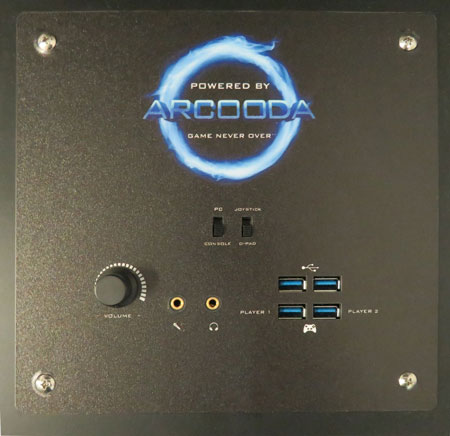

- Game Wizard Add-On: includes new centre console allowing you to plug in guns, controllers, USB, VR headsets. Includes the Highway I/O board allowing almost all current consoles, PCs, Raspberry Pi, Android and more to be played inside the Tempest, all just plug and play - no additional adapters needed.

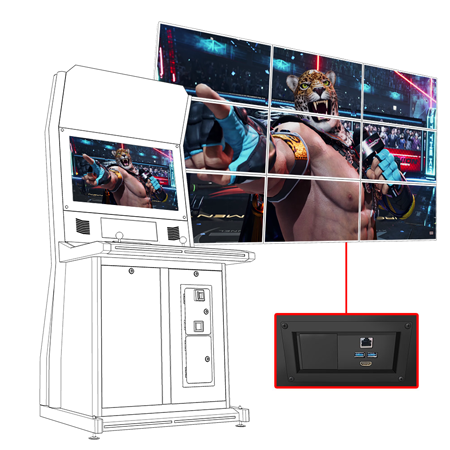

- Arcooda Rear Multimedia Add-On: turn your cabinet into a media centre, with HDMI, USB and RJ45 input/output function. Connect your cabinet to your gaming hub, stream your gameplay on secondary monitors and much more.

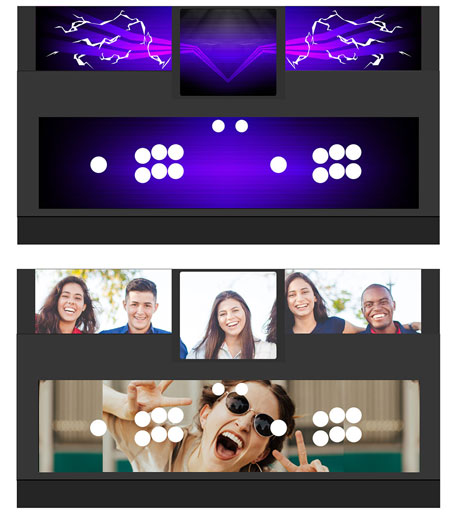

- Custom Artwork: add your own designs to the game header, acrylic plastics and control panel overlay. Full flexibility is available, you can even put your own face on the control panel!

- Gun Shooter Add-On: including gun sensors, and traditional steel pedal assembly for your gun shooting games.

- Coin Door Add-On: add coin operated function easily with the coin door add-on set, simply remove the existing door, mount the new coin door assembly, plug in the coin cabling and you are ready to start earning money.


Please Note: This is a standup arcade machine.

Tempest 32 inch Arcade Cabinet Upright UR Specification

Product Information

Manufacturer
Manufacturer Part No
19266
Product Type
Original Product
Condition
New
Product Category
Location

Monitor Information

Monitor #1
Monitor Size
32 Inch (16:9 Wide)
Monitor Specifications
Up to 1080P
Touchscreen
No
Other Monitor Options Available
VGA + HDMI Input
Monitor Part Number

Cabinet Information

Cabinet Material
Steel (Powdercoated)
Control Panel Material
Steel (Powdercoated)
LED Cabinet Lighting
12V Programmable LED Globes
Joystick Brand
Sanwa
Button Brand
Sanwa

Colour

Color Options
Color Notes
Powercoating colours can be changed (minimum order 10pcs)

Detailed Specifications

  • 32 inch 15/31khz + 1080P custom BOE HD Monitor at 1ms response time
  • Sanwa Joystick (JLF-TP-8YT)
  • Sanwa Push Button OBSF-24
  • Sanwa Push Button OBSF-30
  • Arcooda custom 2.1 audio sound system with subwoofer
  • up to 2mm powdercoated steel cabinet construction

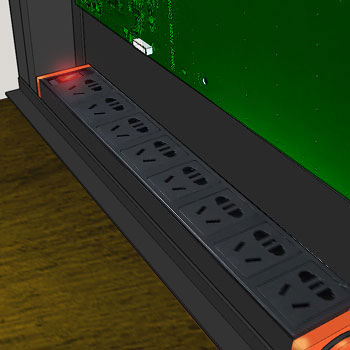

  • 6 port internal power board
  • layered internal cabinet structure with 2 floors
  • internal volume, service and test buttons
  • 110v to 240v fused power input
  • Power Supply = +5V 20A, +12V 8A
  • 2x Programmable 12V LED Circuits, controlled via Bluetooth, Remote or Internal Controller

Dimensions, Weight and Container Packing

Unboxed Details

Depth
77.0 cm
30.31 in
Width
92.0 cm
36.22 in
Height
200.0 cm
78.74 in
Weight
135.00 kg
297.62 lb

Pallet Details

Depth
73.00 cm
28.74 in
Width
96.00 cm
37.79 in
Height
222.00 cm
87.40 in
Weight
150.00 kg
330.69 lb
  • Shipping Weight = 311.1552 kgs

  • Shipping is with professional styrofoam internal packing, full paper carton with pallet.

Container Packing Quantities

20ft Container
18
40ft Container
36
  • 44pcs can load if double stacked.

Information on technical characteristics, the delivery set, the country of manufacture and the appearance of the goods is for reference only and is based on the latest information available at the time of publication.
*Reviews section is provided by customers who purchased this product. If you have purchased the Tempest 32 inch Arcade Cabinet Upright UR and would like to place a review please login and refresh this page.

Included Items

  • Game Wizard Tempest Upright Arcade Machine, standard configuration;

32inch 1.3ms gaming monitor
2 player 6 button control panel

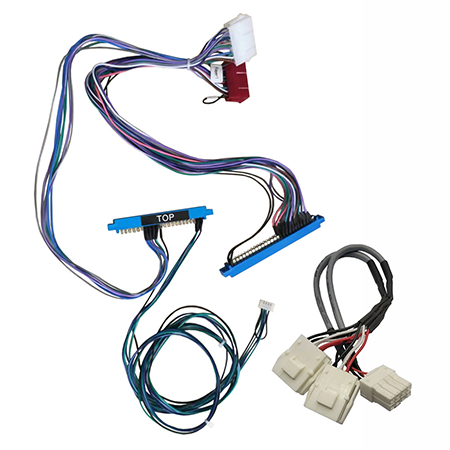

JAMMA wiring system
Sanwa Joysticks and Push Buttons
Arcooda Subwoofer Sound System
2 Layer Internal Cabinet Design and accessories
Daul Programmable lighting circuit

  • Free Spare Parts
  • Remote Control for LED lighting
